2721-204/008-000

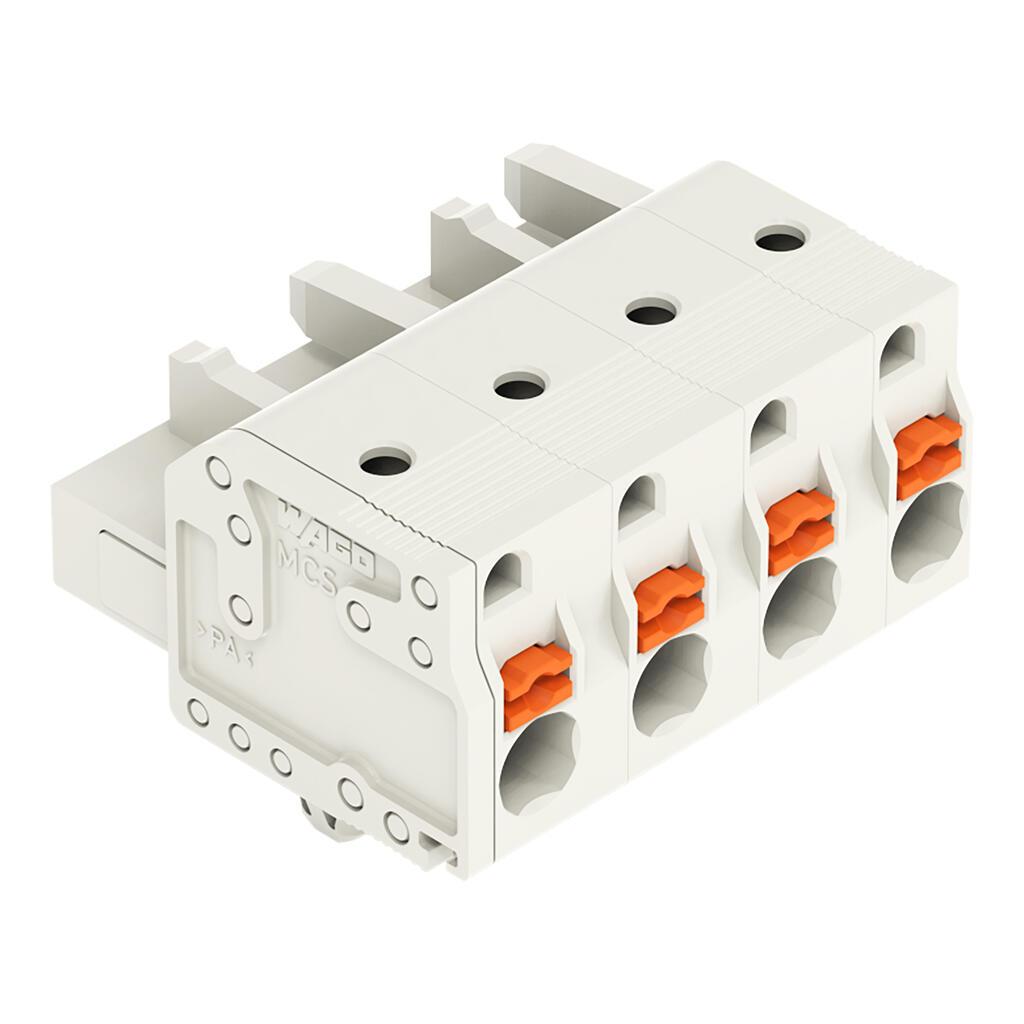

WAGO 2721-204/008-000 1-conductor female plug
Part Number # 2721-204/008-000
SKU # 2377945
$6.65 / Each
Typical price:$7.20 / Each
Wago 2721-204/008-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2721-204/008-000 |
| SKU #: | 2377945 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.768 in H x 1.142 in W x 1.008 in D |
| Number of Poles: | 4 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Push Button |
| Wire Size: | 24 to 12 AWG |
| Actuation type: | Push-button |
| Approvals per: | CSA, UL 1059 |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Connector (connection type): | For conductor |
| Contact material: | Copper alloy |
| Country of origin: | PL |
| Depth: | 25.6 mm / 1.008 inch |
| Height: | 19.5 mm / 0.768 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | Panel, Snap-in mounting foot || Panel mounting |
| Number of connection types: | 1 |
| Rated current: | 16 A |
| Solid conductor: | 0.2 … 2.5 mm² / 24 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 7.902 g |
| Width: | 29 mm / 1.142 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04045454745059 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.65 / Each
Typical price:$7.20 / Each
Quantity:
- WAGO, 2721-204/008-000, 1-Conductor Female Connector, Push Button, 1 kV, 16 A, 4 Pole, 24 to 12 AWG Wire, 0.39 to 0.43 in Wire Strip Length, Panel Mounting, Push-In Connection, -35 to 60 deg C, Polyamide, Light Gray, 0.768 in H x 1.142 in W x 1.008 in D Dimensions
2721-204/008-000 Item Features
- Universal connection for all conductor types
- Easy-to-use design does not require specialty tools
- Ability to wire while mated
- Simple, push-in termination of solid and ferruled conductors
- Integrated test ports for testing parallel to the conductor entry
- 100 Percent protected against mismating
- Coding option available
2721-204/008-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2377945Part Number #2721-204/008-000UNSPSC39121469UPC04045454745059
