Part Number # 2787-2346
SKU # 2399124
Image Disclaimers Message
2787-2346

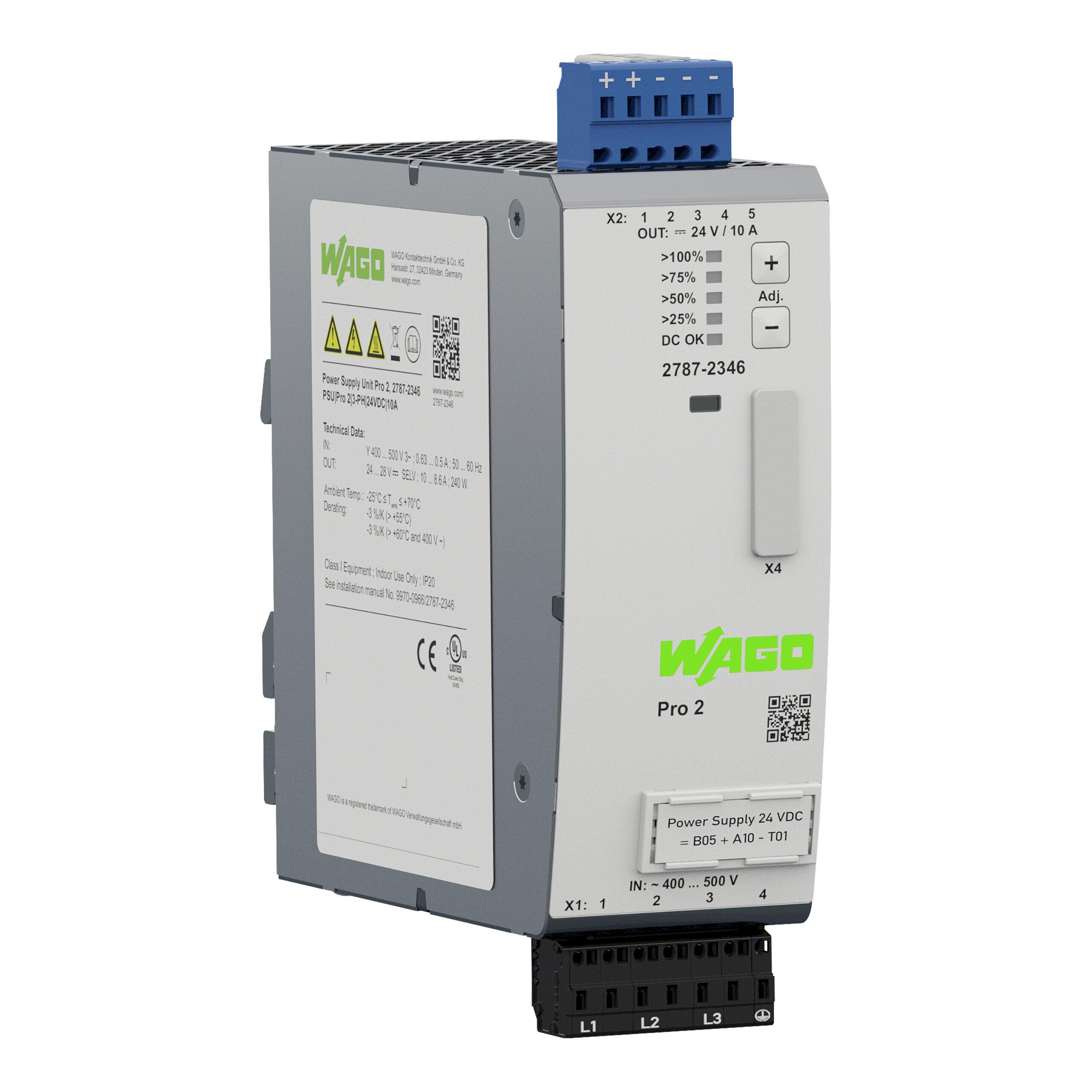

WAGO 2787-2346 Electrical Connector Assembly
Part Number # 2787-2346
SKU # 2399124
$432.28 / Each
Wago 2787-2346 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2787-2346 |
| SKU #: | 2399124 |
| Frequency Rating: | 50 to 60 Hz |
| Input Voltage: | 550 V |
| Depth: | 5.118 in |
| Height: | 5.118 in |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Output voltage: | 24 VDC |
| Width: | 1.96 in |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04066966137835 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$432.28 / Each
Quantity:
- WAGO, 2787-2346, 3-Phase, 550 V Input, 24 VDC Output, 50 to 60 Hz Frequency, DIN Rail Mounting, 1.96 in Width, 5.118 in Depth, 5.118 in Height
2787-2346 Application
Suitable for both parallel and series operation2787-2346 Item Features
- Power supply with TopBoost, PowerBoost and configurable overload behavior
- Configurable digital signal input and output, optical status indication, function keys
- Communication interface for configuration and monitoring
- Optional connection to IO-Link, EtherNet/IP , Modbus TCP or Modbus RTU
- Natural convection cooling when horizontally mounted
- Electrically isolated output voltage (SELV/PELV)
- Marker slot for WAGO marking cards (WMB) and WAGO marking strips
2787-2346 Standards
SEMI F47|EN 61010-1|EN 61010-2-201|EN 61204-3|UL 61010-1|UL 61010-2-201|RoHS Compliant|CE|IP20SKU #2399124Part Number #2787-2346UNSPSC39121421UPC04066966137835
