Brand: Wago

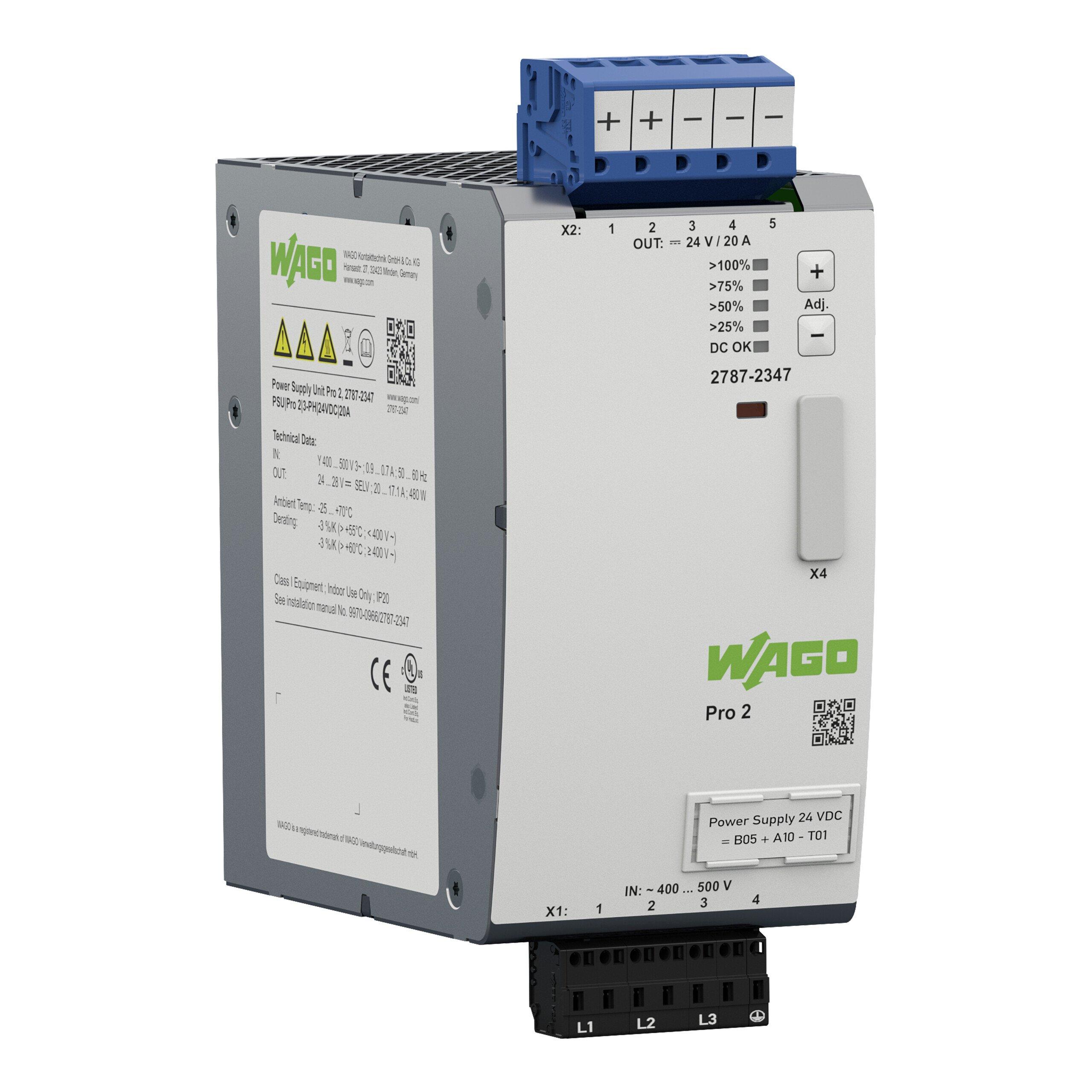

WAGO 2787-2347 2787 3-Phase Power Supply
Image Disclaimers Message
Brand: Wago
WAGO 2787-2347 2787 3-Phase Power Supply
Brand: Wago
WAGO 2787-2347 2787 3-Phase Power Supply
Part #:2787-2347
SKU #: 2381295
$501.85/EA
Key Features
Part #:2787-2347
SKU #: 2381295
Brand: Wago
Amperage Rating: 20 A
Frequency Rating: 50 to 60 Hz
Input Voltage: 400 to 500 VAC
Series: 2787
Type: 3-Phase
$501.85/EA
- Power supply with TopBoost, PowerBoost and configurable overload behavior
- Configurable digital signal input and output, optical status indication, function keys
- Communication interface for configuration and monitoring
- Optional connection to IO-Link, EtherNet/IP, Modbus TCP or Modbus RTU
- Suitable for both parallel and series operation
- Natural convection cooling when horizontally mounted
- Pluggable connection technology
- Marker slot for WAGO marking cards (WMB) and WAGO marking strips
Specifications
Brand: Wago
Amperage Rating: 20 A
Frequency Rating: 50 to 60 Hz
Input Voltage: 400 to 500 VAC
Series: 2787
Type: 3-Phase
Communication: Communication interface, can be used with WAGO USB Communication Cable (750-923) or IO-Link Communication Module (2789-9080) or Modbus RTU Communication Module (2789-9015)
Connection technology: CAGE CLAMP®
Country of origin: CN
Depth: 5.1 in
Height: 130 mm / 5.118 inch, 5.1 in
Inrush current: ≤ 15 A (after 1 ms)
Mounting type: 35 mm DIN Rail, DIN-35 rail
MTBF: > 800,000 h (per IEC 61709)
Open-circuit-proof: Yes
Output voltage: 24 VDC
Output voltage range: DC 24 … 28 V (adjustable)
Parallel operation: Yes
Power factor correction (PFC): Active
Protection class: I
Protection type: IP20 (per EN 60529)
Short-circuit-protected: Yes
Signaling: Optical status indication (DC OK; load; warning and error states) || Digital signal input and output (DI/DO)
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Standards/Specifications: EN 61010-1; EN 61010-2-201; EN 61204-3; UL 61010-1; UL 61010-2-201
Transient suppression (primary): Yes
WAGO Connector: WAGO 721 Series
Weight: 1400.000 g
Width: 2.75 in, 70 mm / 2.756 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04055143907163
WAGO 2787-2347 2787 3-Phase Power Supply
Additional Description: WAGO-2787-2347 PSU, PRO 2, 3-PHASE, 24 VDC OUTPUT VOLTAGE, 20 A OUTPUT CURRENT 60411493 communicaticapability
Catalog Description: Power supply; Pro 2; 3-phase; 24 VDC output voltage; 20 A output current; TopBoost + PowerBoost; communication capability
Item FeaturesSuitable for both parallel and series operation
Item Features
Item FeaturesRoHS Compliant|EN 61010-1|EN 61010-2-201|EN 61204-3|UL 61010-1|UL 61010-2-201
