Part Number # 2787-2448
SKU # 2381258
Image Disclaimers Message
Brand: Wago
2787-2448

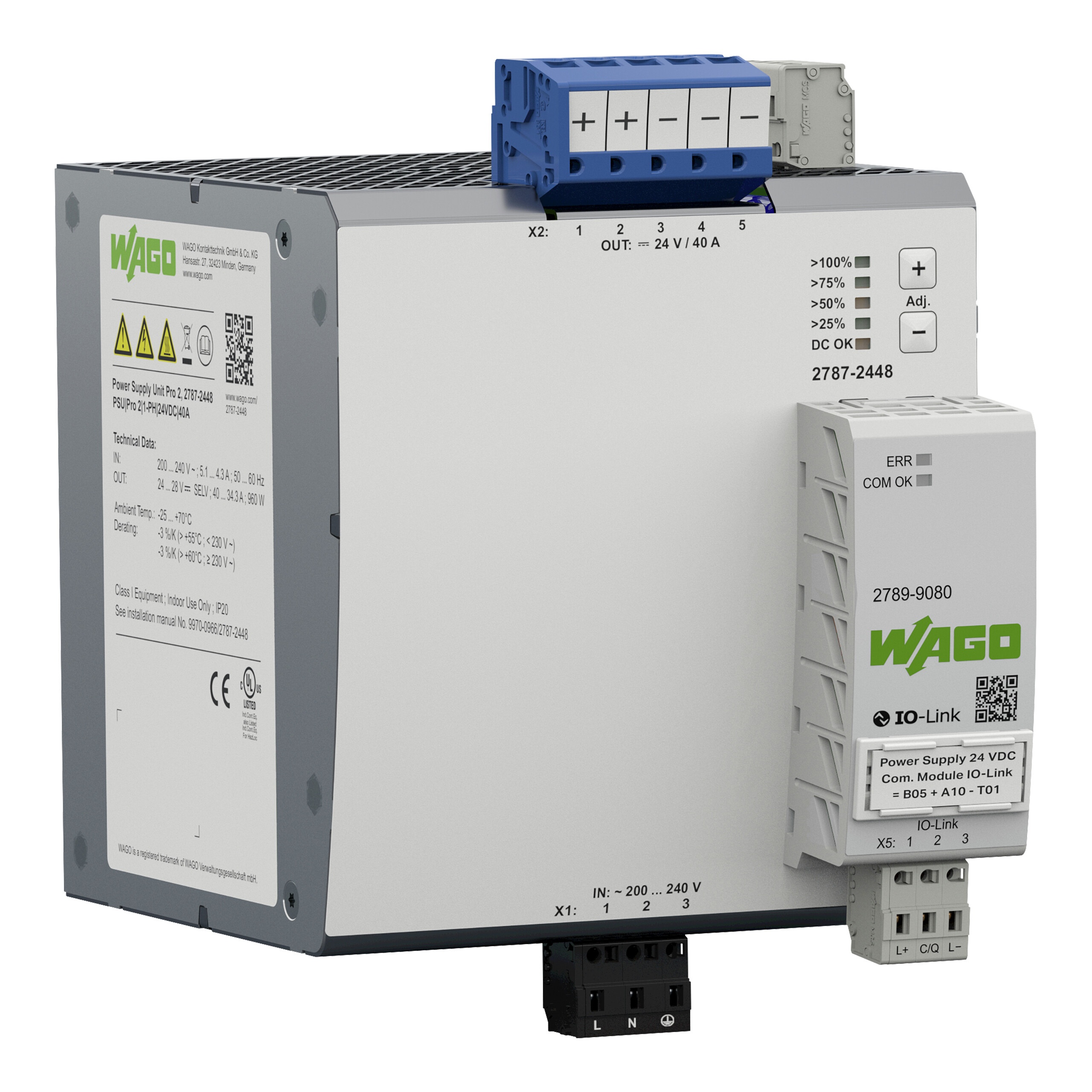

WAGO 2787-2448 Data Base User Interface And Query Software
Part Number # 2787-2448
SKU # 2381258
$712.60 / Each
Wago 2787-2448 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2787-2448 |
| SKU #: | 2381258 |
| Frequency Rating: | 50 to 60 Hz |
| Input Voltage: | 264 V |
| Communication: | Communication interface, can be used with WAGO USB Communication Cable (750-923) or IO-Link Communication Module (2789-9080) or Modbus RTU Communication Module (2789-9015) |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | CN |
| Depth: | 5.118 in |
| Height: | 130 mm / 5.118 inch, 5.118 in |
| Inrush current: | ≤ 10 A (after 1 ms) |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| MTBF: | > 900,000 h (per IEC 61709) |
| Open-circuit-proof: | Yes |
| Output voltage: | 24 V DC, 24 VDC |
| Output voltage range: | DC 24 … 28 V (adjustable) |
| Parallel operation: | Yes |
| Power factor: | ≥ 0.98 (240 VAC) |
| Power factor correction (PFC): | Active |
| Protection class: | I |
| Protection type: | IP20 (per EN 60529) |
| Short-circuit-protected: | Yes |
| Signaling: | Optical status indication (DC OK; load; warning and error states) || Digital signal input and output (DI/DO) |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Standards/Specifications: | EN 61010-1; EN 61010-2-201; EN 61204-3; UL 61010-1; UL 61010-2-201 |
| Transient suppression (primary): | Yes |
| WAGO Connector: | WAGO 721 Series |
| Weight: | 1900.000 g |
| Width: | 120 mm / 4.724 inch, 4.72 in |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04055143878296 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$712.60 / Each
Quantity:
- WAGO, 2787-2448, 1-Phase, 264 V Input, 24 V DC Output, 50 to 60 Hz Frequency, DIN Rail Mounting, 4.72 in Width, 5.118 in Depth, 5.118 in Height
2787-2448 Application
Suitable for both parallel and series operation2787-2448 Item Features
- Power supply with TopBoost, PowerBoost and configurable overload behavior
- Configurable digital signal input and output, optical status indication, function keys
- Communication interface for configuration and monitoring
- Optional connection to IO-Link, EtherNet/IP , Modbus TCP or Modbus RTU
- Natural convection cooling when horizontally mounted
- Electrically isolated output voltage (SELV/PELV)
- Marker slot for WAGO marking cards (WMB) and WAGO marking strips
2787-2448 Standards
SEMI F47|EN 61010-1|EN 61010-2-201|EN 61204-3|UL 61010-1|UL 61010-2-201|RoHS Compliant|CE|IP20SKU #2381258Part Number #2787-2448UNSPSC43232306UPC04055143878296
