Brand: Wago

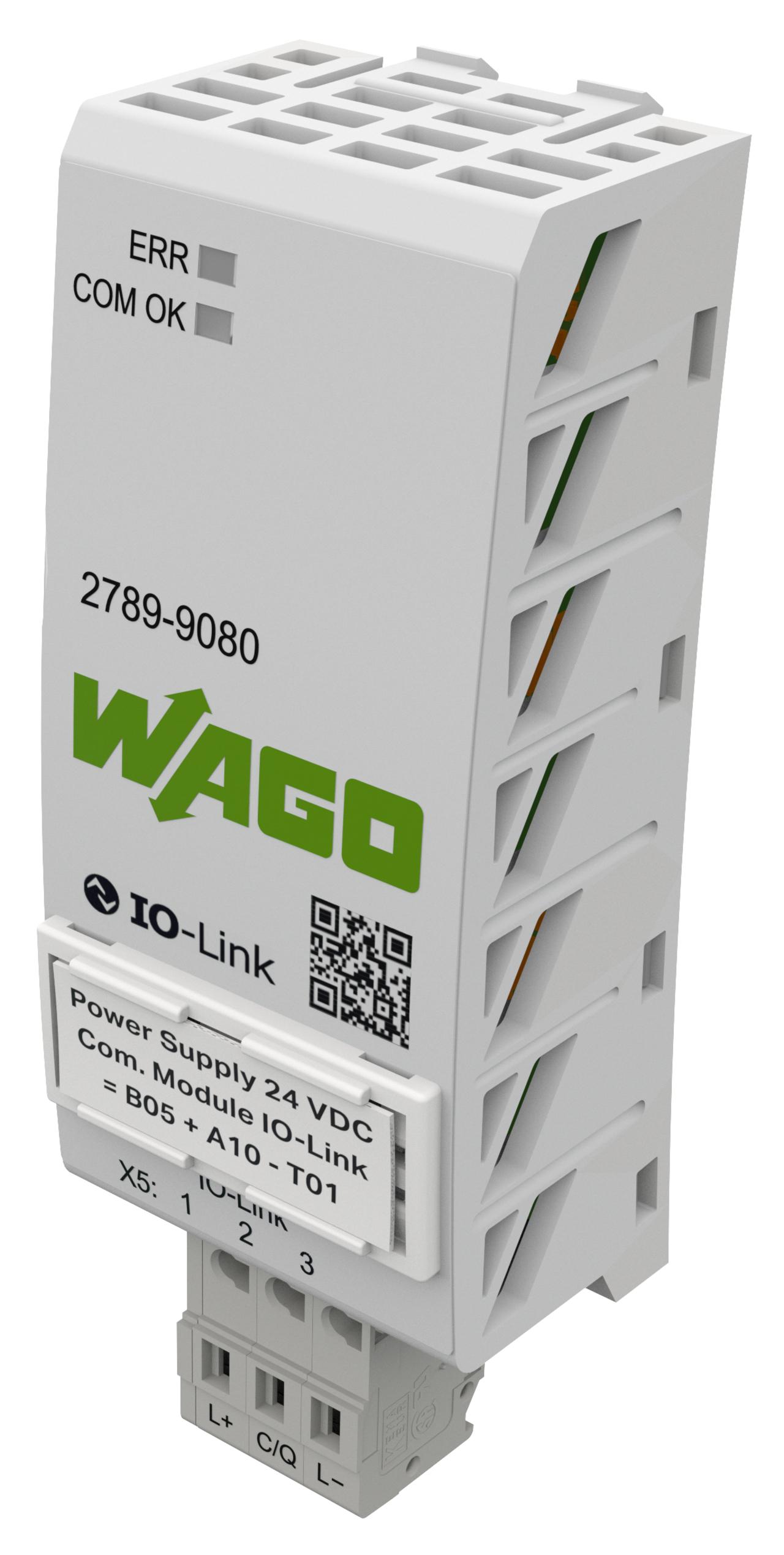

WAGO 2789-9080 Communication module
Image Disclaimers Message
Brand: Wago
WAGO 2789-9080 Communication module
Brand: Wago
WAGO 2789-9080 Communication module
Part #:2789-9080
SKU #: 2381259
$74.48/EA
Key Features
Part #:2789-9080
SKU #: 2381259
Brand: Wago
Baud rate: 230.4 kBd (COM 3)
Communication: IO-Link
Connection technology: CAGE CLAMP®
Country of origin: VN
Depth: 22 mm / 0.866 inch
$74.48/EA
Specifications
Brand: Wago
Baud rate: 230.4 kBd (COM 3)
Communication: IO-Link
Connection technology: CAGE CLAMP®
Country of origin: VN
Depth: 22 mm / 0.866 inch
Height: 95 mm / 3.74 inch
Isolation: 0.63 kVDC
Mounting type: Snaps onto Pro 2 Power Supplies' communication interface (X4)
Protection class: III
Protection type: IP20 (per EN 60529)
Signaling: 1 x COM OK LED (green) || 1 x ERR LED (red)
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Standards/Specifications: EN 61010-1; EN 61010-2-201; EN 61204-3; EN 61000-6-2; EN 61000-6-3; UL 61010-1; UL 61010-2-201
WAGO Connector: WAGO 721 Series
Weight: 35.000 g
Width: 35 mm / 1.378 inch
UNSPSC: 43232306
UPC: 04055143905701
WAGO 2789-9080 Communication module
Additional Description: WAGO-2789-9080 COM. MOD. IO-LINK, 1 PCS. 60411190
Catalog Description: Communication module; IO-Link; communication capability
