Part Number # 279-624/281-434
SKU # 2363899
Brand: Wago
279-624/281-434

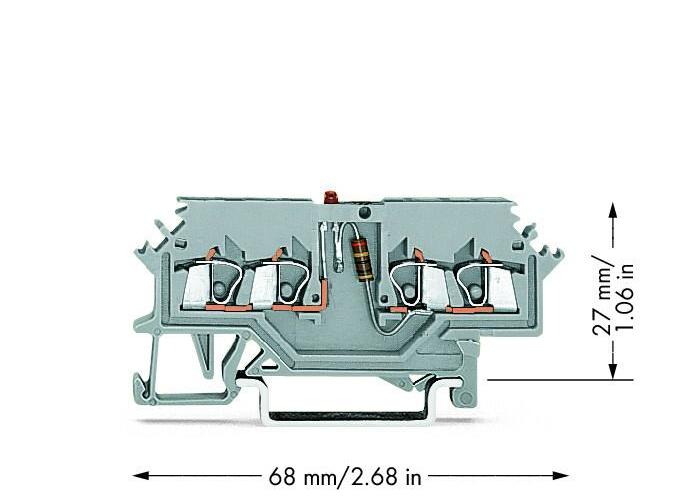

WAGO 279-624/281-434 LED terminal block
Part Number # 279-624/281-434
SKU # 2363899
$14.34 / Each
Typical price:$15.53 / Each
Wago 279-624/281-434 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 279-624/281-434 |
| SKU #: | 2363899 |
| Amperage Rating: | 0.025 A |
| Dimensions: | 2.677 in H x 0.157 in W x 1.063 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 16 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 68 mm / 2.677 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 0.025 A |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Total number of connection points: | 4 |
| Weight: | 5.921 g |
| Width: | 4 mm / 0.157 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454193959 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$14.34 / Each
Typical price:$15.53 / Each
Quantity:
WAGO 279-624/281-434 LED terminal block
Brand: Wago
Part Number: 279-624/281-434
Additional Description: WAGO-279-624/281-434 COMPONENT TERMINAL BLOCK; 4-CONDUCTOR; LED (RED); 24 VDC; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 1.5 MM ; CAGE CLAMP ; 1,50 MM ; GRAY 51168263
Catalog Description: Component terminal block; 4-conductor; LED (red); 24 VDC; for DIN-rail 35 x 15 and 35 x 7.5; 1.5 mm²; CAGE CLAMP®; 1,50 mm²; gray
279-624/281-434 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2363899Part Number #279-624/281-434UNSPSC39121410UPC04045454193959
