Part Number # 279-626
SKU # 2258605
Image Disclaimers Message
279-626

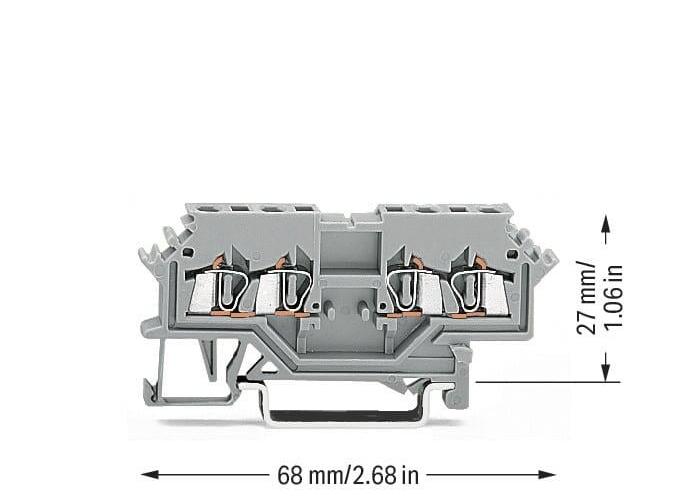

WAGO 279-626 Double potential terminal block
Part Number # 279-626
SKU # 2258605
$3.86 / Each
Typical price:$4.18 / Each
Wago 279-626 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 279-626 |
| SKU #: | 2258605 |
| Amperage Rating: | 18 A |
| Dimensions: | 2.677 in H x 0.157 in W x 1.063 in D |
| Number of Poles: | 2 |
| Type: | Operating Tool |
| Wire Size: | 28 to 16 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 68 mm / 2.677 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 18 A |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Total number of connection points: | 4 |
| Weight: | 5.746 g |
| Width: | 4 mm / 0.157 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918504546 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.86 / Each
Typical price:$4.18 / Each
Quantity:
- WAGO, 279-626, Conductor Terminal Block, Operating Tool, 800 V, 18 A, 2 Pole, 28 to 16 AWG Wire, 0.31 to 0.35 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Gray, 2.677 in H x 0.157 in W x 1.063 in D Dimensions
279-626 Standards
CSA 22.2 No 158|IEC/EN 60947-7-1|RoHS CompliantSKU #2258605Part Number #279-626UNSPSC39121410UPC04044918504546
