Part Number # 279-674/281-413
SKU # 2256611
Brand: Wago
279-674/281-413

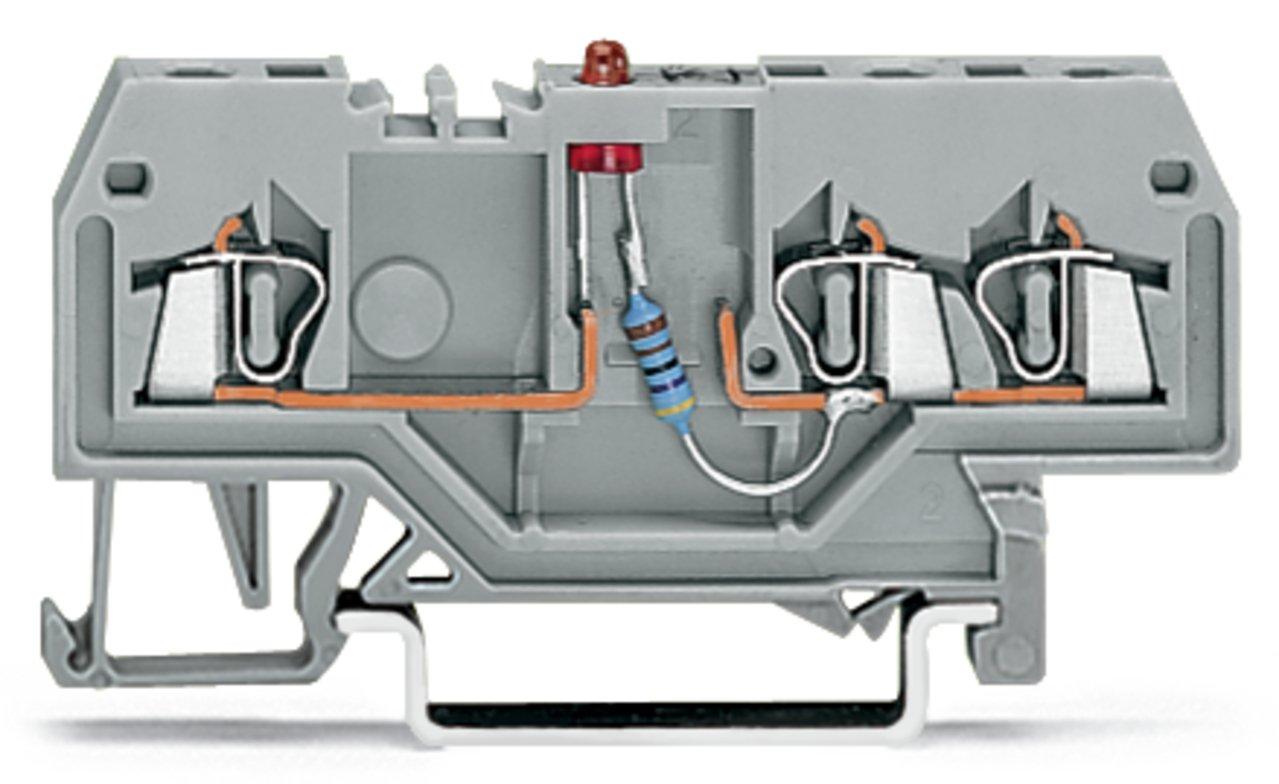

WAGO 279-674/281-413 LED terminal block
Part Number # 279-674/281-413
SKU # 2256611
$14.14 / Each
Typical price:$15.32 / Each
Wago 279-674/281-413 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 279-674/281-413 |
| SKU #: | 2256611 |
| Amperage Rating: | 25 mA |
| Dimensions: | 2.461 in H x 0.157 in W x 1.063 in D |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Terminal Type: | Push-In Spring |
| Wire Size: | 28 to 16 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 62.5 mm / 2.461 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 |
| Mounting type: | DIN Rail, DIN-35 rail |
| Rated current: | 0.025 A |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Total number of connection points: | 3 |
| Weight: | 5.575 g |
| Width: | 4 mm / 0.157 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454194017 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$14.14 / Each
Typical price:$15.32 / Each
Quantity:
WAGO 279-674/281-413 LED terminal block
Brand: Wago
Part Number: 279-674/281-413
Additional Description: WAGO-279-674/281-413 COMPONENT TERMINAL BLOCK; 3-CONDUCTOR; LED (RED); 24 VDC; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 1.5 MM; CAGE CLAMP; 1,50 MM; GRAY 51168269 3-CONDUCTOR; LED (RED); 24 VDC; FOR MM ; CAGE CLAMP ; 1,50 MM ; GRAY
Catalog Description: Component terminal block; 3-conductor; LED (red); 24 VDC; for DIN-rail 35 x 15 and 35 x 7.5; 1.5 mm²; CAGE CLAMP®; 1,50 mm²; gray
279-674/281-413 Standards
RoHS Compliant|IEC/EN 60947-7-1SKU #2256611Part Number #279-674/281-413UNSPSC39121410UPC04045454194017
Image provided may only be a representation of final product and may include optional equipment
