Part Number # 279-684
SKU # 2230880
Image Disclaimers Message
Brand: Wago
279-684
WAGO 279-684 3-conductor through terminal block
Part Number # 279-684
SKU # 2230880
$2.28 / Each
Typical price:$2.47 / Each
Wago 279-684 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 279-684 |
| SKU #: | 2230880 |
| Amperage Rating: | 18 A |

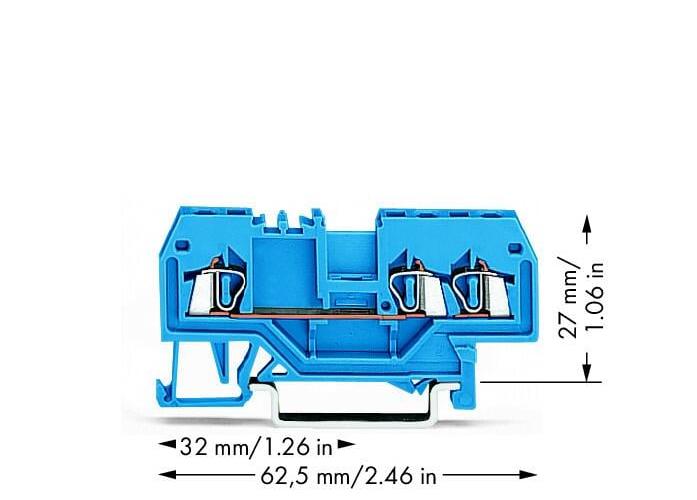

| Dimensions: | 2.461 in H x 0.157 in W x 1.063 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 28 to 16 AWG |
| Actuation type: | Operating tool |
| Color: | Blue |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 62.5 mm / 2.461 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 18 A |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Total number of connection points: | 3 |
| Weight: | 5.378 g |
| Width: | 4 mm / 0.157 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918650526 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.28 / Each
Typical price:$2.47 / Each
Quantity:
WAGO 279-684 3-conductor through terminal block
Brand: Wago
Part Number: 279-684
Additional Description: WAGO-279-684 3-CONDUCTOR THROUGH TERMINAL BLOCK; 1.5 MM; SUITABLE FOR EX I APPLICATIONS; CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP; 1,50 MM; BLUE 51140563 DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP ; 1,50 MM ; BLUE 51140563
Catalog Description: 3-conductor through terminal block; 1.5 mm²; suitable for Ex i applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 1,50 mm²; blue
279-684 Application
Suitable for Ex i applications279-684 Standards
CSA 22.2 No 158|IEC/EN 60947-7-1|RoHS CompliantSKU #2230880Part Number #279-684UNSPSC39121410UPC04044918650526
