Brand: Wago
279-687

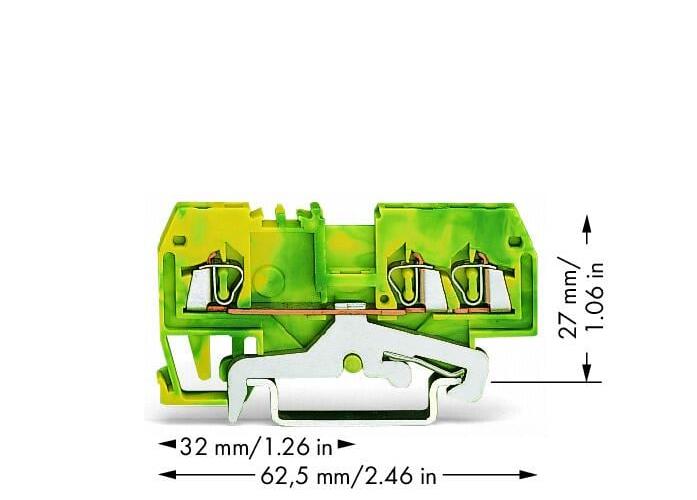

WAGO 279-687 3-conductor ground terminal block
Part Number # 279-687
SKU # 2359278
$8.61 / Each
Typical price:$9.33 / Each
Wago 279-687 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 279-687 |
| SKU #: | 2359278 |
| Dimensions: | 2.461 in H x 0.157 in W x 1.063 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 16 AWG |
| Actuation type: | Operating tool |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 62.5 mm / 2.461 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Total number of connection points: | 3 |
| Weight: | 8.886 g |
| Width: | 4 mm / 0.157 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454084448 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.61 / Each
Typical price:$9.33 / Each
Quantity:
- WAGO, 279-687, Ground Terminal Block, Operating Tool, 1 Pole, 28 to 16 AWG Wire, 0.31 to 0.35 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, -35 to 85 deg C, Polyamide, Green/Yellow, 2.461 in H x 0.157 in W x 1.063 in D Dimensions
279-687 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2359278Part Number #279-687UNSPSC39121410UPC04045454084448
