Part Number # 279-834
SKU # 2184567
Image Disclaimers Message
279-834

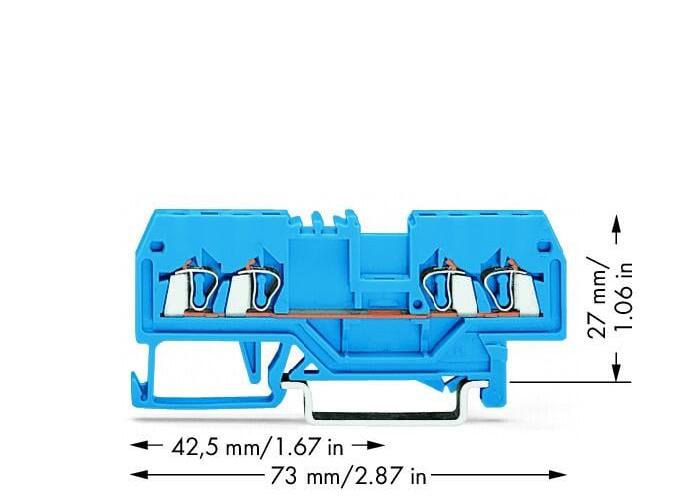

WAGO 279-834 4-conductor through terminal block
Part Number # 279-834
SKU # 2184567
$2.70 / Each
Typical price:$2.93 / Each
Wago 279-834 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 279-834 |
| SKU #: | 2184567 |
| Amperage Rating: | 18 A |
| Dimensions: | 2.874 in H x 0.157 in W x 1.063 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 28 to 16 AWG |
| Actuation type: | Operating tool |
| Color: | Blue |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 73 mm / 2.874 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 18 A |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Total number of connection points: | 4 |
| Weight: | 6.310 g |
| Width: | 4 mm / 0.157 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918520560 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.70 / Each
Typical price:$2.93 / Each
Quantity:
- WAGO, 279-834, Conductor Terminal Block, Operating Tool, 800 V, 18 A, 1 Pole, 28 to 16 AWG Wire, 0.31 to 0.35 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Blue, 2.874 in H x 0.157 in W x 1.063 in D Dimensions
279-834 Application
Suitable for Ex i applications279-834 Standards
CSA 22.2 No 158|IEC/EN 60947-7-1|RoHS CompliantSKU #2184567Part Number #279-834UNSPSC39121410UPC04044918520560
