Part Number # 279-901
SKU # 310480
Image Disclaimers Message
279-901
WAGO 279-901 2-conductor through terminal block
Part Number # 279-901
SKU # 310480
$174.00 / 100Each
Typical price:$189.00 / Each
Wago 279-901 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 279-901 |
| SKU #: | 310480 |
| Amperage Rating: | 18 A |

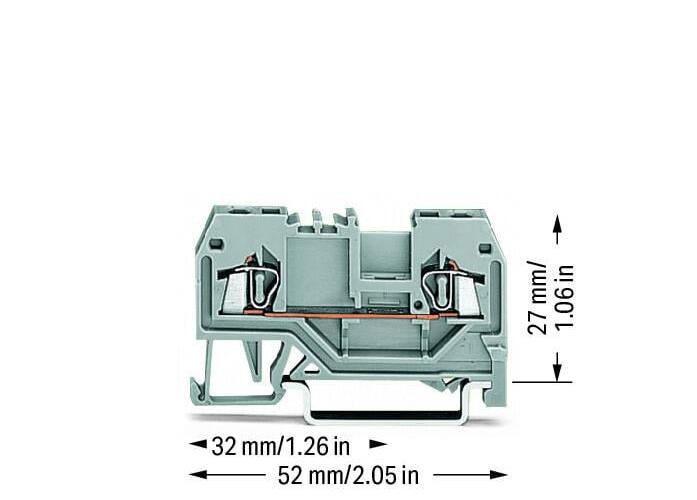

| Dimensions: | 2.047 in H x 0.157 in W x 1.063 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 28 to 16 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 52 mm / 2.047 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 18 A |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Total number of connection points: | 2 |
| Weight: | 4.270 g |
| Width: | 4 mm / 0.157 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918524506 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$174.00 / 100Each
Typical price:$189.00 / Each
Quantity:
- WAGO, 279-901, Conductor Terminal Block, Operating Tool, 800 V, 18 A, 1 Pole, 28 to 16 AWG Wire, 0.31 to 0.35 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Gray, 2.047 in H x 0.157 in W x 1.063 in D Dimensions
279-901 Standards
CSA 22.2 No 158|IEC/EN 60947-7-1|RoHS CompliantSKU #310480Part Number #279-901UNSPSC39121410UPC04044918524506
