- 2 Clamping Points
- 1 Potentials
- Side-entry wiring
Specifications
Brand: Wago
Dimensions: 1.77 in H x 0.19 in W x 1.20 in D
Number of Poles: 2
Series: 280
Temperature Rating (Degrees F): -35 to 85 deg C
Terminal Type: Cage Clamp
Type: 2-Conductor
Wire Size: 28 to 12 AWG
Actuation type: Operating tool
Color: Green-yellow, Green/Yellow
Connection technology: CAGE CLAMP®
Connection type: Cage Clamp
Country of origin: IN
Depth: 45 mm / 1.772 inch
Insulation material: Polyamide (PA66)
Material: Polyamide (PA66)
Mounting type: 35 mm DIN Rail, DIN-35 rail
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 2
Weight: 8.079 g
Width: 5 mm / 0.197 inch
Wiring type: Side-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121410
UPC: 04055143309325

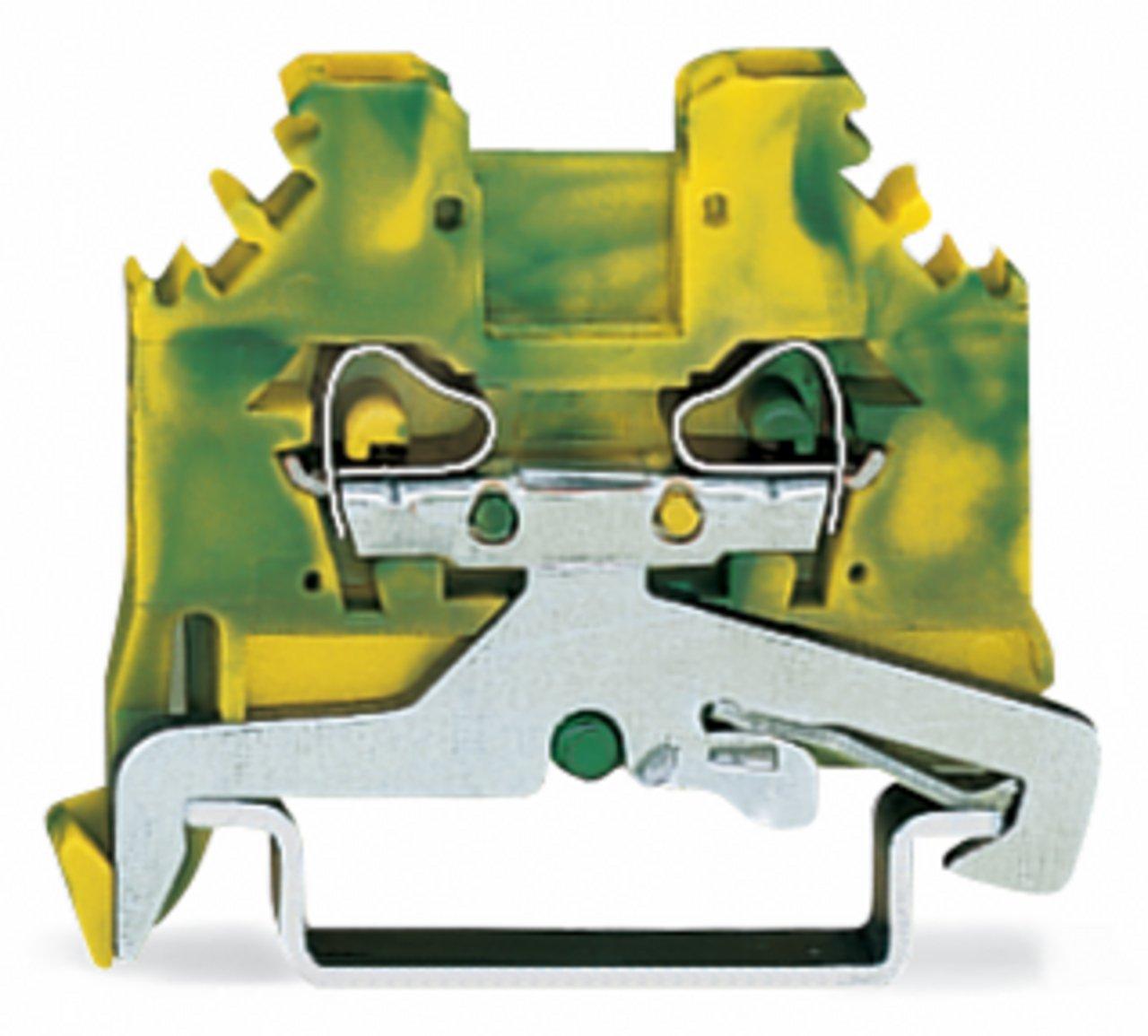

WAGO 280-107 2-conductor ground terminal block
WAGO, 280-107, Terminal Block, 2-Conductor, Series: 280, 2 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, Cage Clamp Terminal, 35 mm DIN Rail Mounting, -35 to 85 deg C, Polyamide (PA66), Green/Yellow, 1.77 in H x 0.19 in W x 1.20 in D Dimensions
Additional Description: WAGO-280-107 2-CONDUCTOR GROUND TERMINAL BLOCK; 2.5 MM; LATERAL MARKER SLOTS; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP; 2,50 MM; GREEN-YELLOW 60263927 51160747
Catalog Description: 2-conductor ground terminal block; 2.5 mm²; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2,50 mm²; green-yellow
Item Features
Item FeaturesRoHS Compliant
