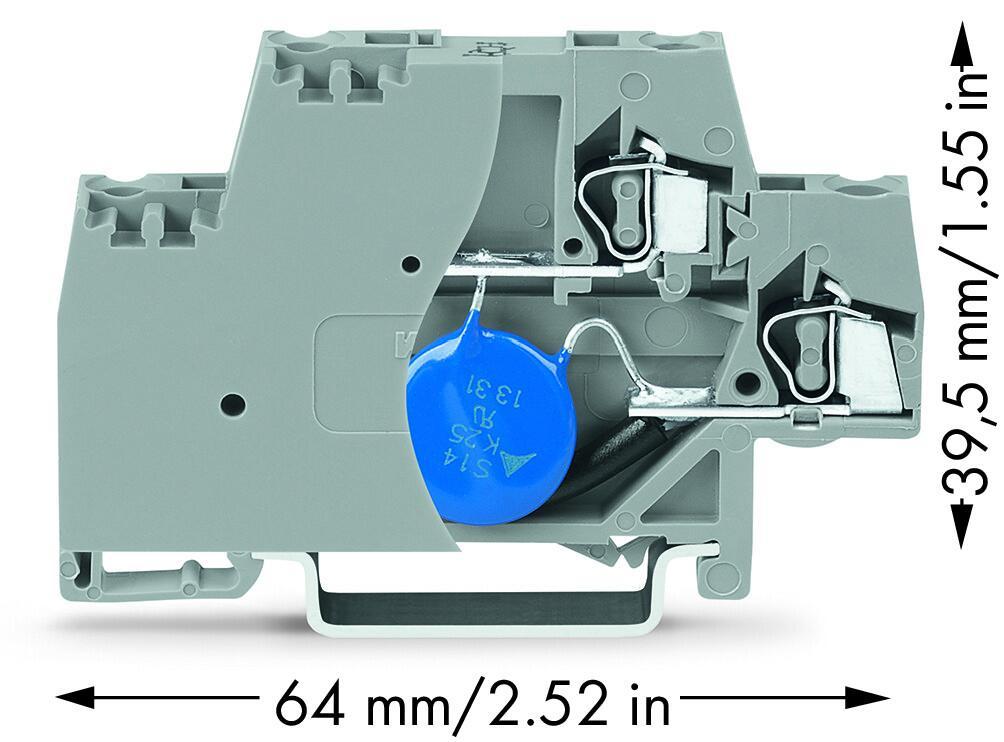

WAGO 280-504/281-588 Terminal block with varistor and end plate
Part Number # 280-504/281-588
SKU # 2352884
$30.54 / Each
Typical price:$33.08 / Each
Wago 280-504/281-588 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 280-504/281-588 |
| SKU #: | 2352884 |
| Amperage Rating: | 20 A |
| Dimensions: | 2.52 in H x 0.394 in W x 1.555 in D |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Double-Deck |
| Wire Size: | 28 to 14 AWG |
| Capacitance: | ≤ 320 pF |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 64 mm / 2.52 inch |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated continuous current: | 20 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Weight: | 15.789 g |
| Width: | 10 mm / 0.394 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454368418 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$30.54 / Each
Typical price:$33.08 / Each
Quantity:
- WAGO, 280-504/281-588, Component Terminal Block, Double-Deck, 230 V AC, 20 A, 28 to 14 AWG Wire, 0.31 to 0.35 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, -35 to 85 deg C, Polyamide, Gray, 2.52 in H x 0.394 in W x 1.555 in D Dimensions
280-504/281-588 Item Features
- Protect your system against overvoltage
- Slim, space-saving design
- Control operational costs by preventing expensive, unplanned downtime
- High operational reliability and system uptime
280-504/281-588 Standards
RoHS CompliantSKU #2352884Part Number #280-504/281-588UNSPSC39121410UPC04045454368418
