Part Number # 280-510
SKU # 856445
Image provided may only be a representation of
final product and may include optional equipment
Brand: Wago
280-510

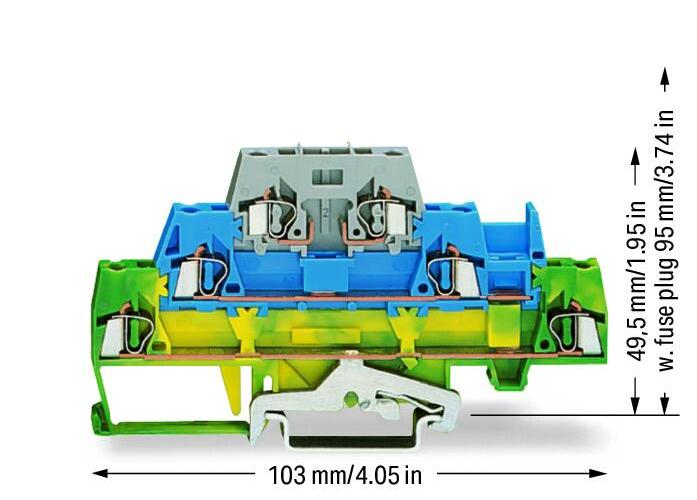

WAGO 280-510 Triple-deck terminal block
Part Number # 280-510
SKU # 856445
$22.25 / Each
Typical price:$24.10 / Each
Wago 280-510 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 280-510 |
| SKU #: | 856445 |
| Amperage Rating: | 20 A |
| Dimensions: | 4.055 in H x 0.197 in W x 1.949 in D |
| Number of Poles: | 3 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 103 mm / 4.055 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 20 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 6 |
| Weight: | 20.753 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821293552 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$22.25 / Each
Typical price:$24.10 / Each
Quantity:
WAGO 280-510 Triple-deck terminal block
Brand: Wago
Part Number: 280-510
Additional Description: WAGO-280-510 (N) TRIPLE-DECK TERMINAL BLOCK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GREEN-YELLOW/BLUE/GRAY NON-CANCELABLE, NON-RETURNABLE 51245274
Catalog Description: Triple-deck terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; green-yellow/blue/gray
280-510 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #856445Part Number #280-510UNSPSC39121410UPC04050821293552
