Part Number # 280-514
SKU # 2236549
Image provided may only be a representation of
final product and may include optional equipment
Brand: Wago
280-514

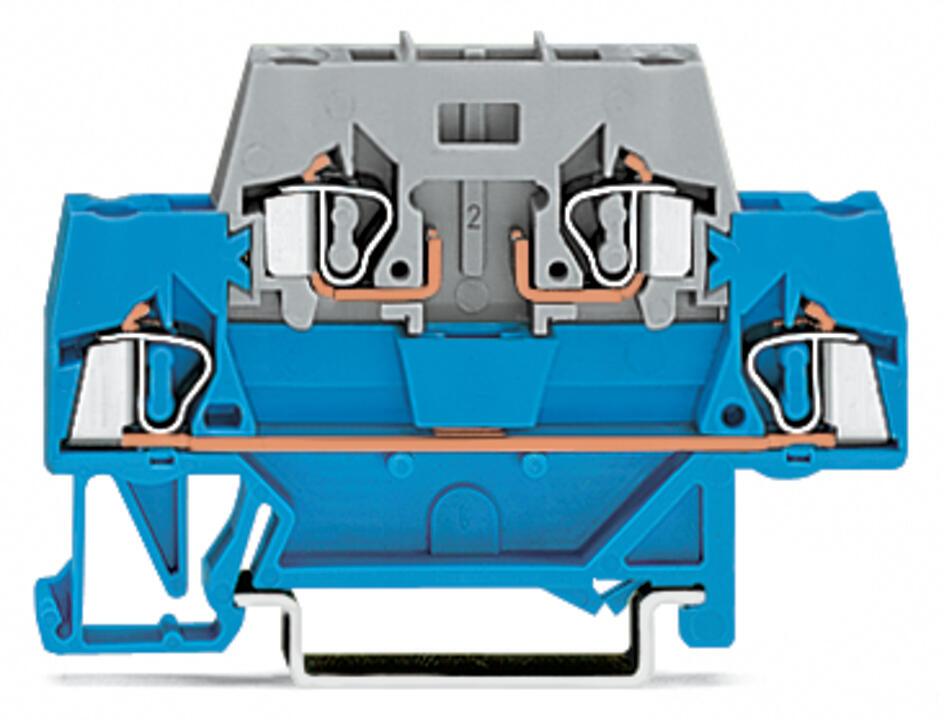

WAGO 280-514 Double-deck terminal block
Part Number # 280-514
SKU # 2236549
$7.18 / Each
Typical price:$7.78 / Each
Wago 280-514 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 280-514 |
| SKU #: | 2236549 |
| Dimensions: | 2.52 in H x 0.197 in W x 1.555 in D |
| Number of Poles: | 2 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 64 mm / 2.52 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 0.416666666666667 |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 9.238 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918538985 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7.18 / Each
Typical price:$7.78 / Each
Quantity:
WAGO 280-514 Double-deck terminal block
Brand: Wago
Part Number: 280-514
Additional Description: WAGO-280-514 DOUBLE-DECK TERMINAL BLOCK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GRAY/GRAY 51133271
Catalog Description: Double-deck terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray/gray
280-514 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2236549Part Number #280-514UNSPSC39121410UPC04044918538985
