Brand: Wago
280-530

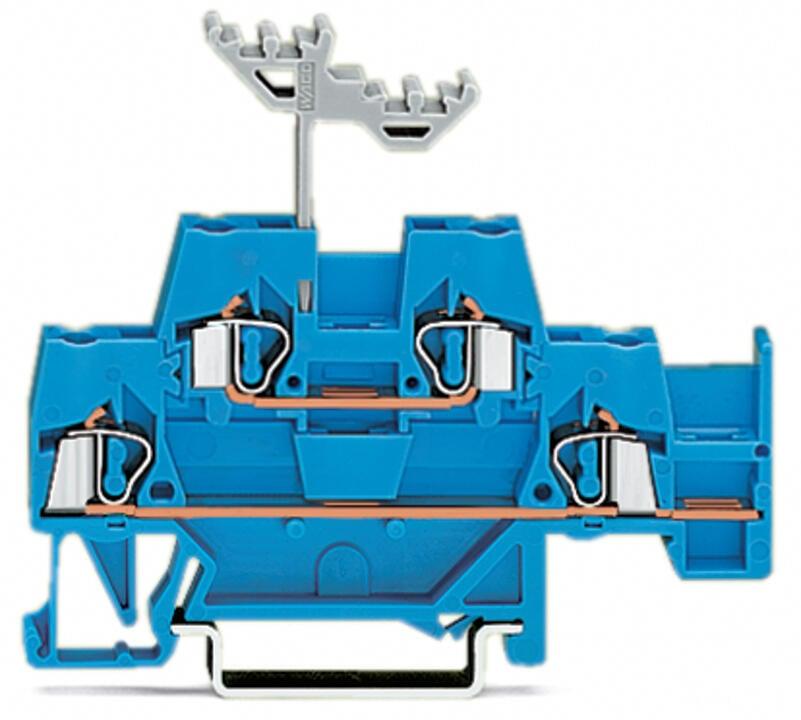

WAGO 280-530 Double-deck terminal block
Part Number # 280-530
SKU # 295460
$6.62 / Each
Typical price:$7.17 / Each
Wago 280-530 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 280-530 |
| SKU #: | 295460 |
| Amperage Rating: | 20 A |
| Dimensions: | 2.913 in H x 0.197 in W x 2.303 in D |
| Number of Poles: | 2 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 74 mm / 2.913 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 20 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 10.461 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821293651 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.62 / Each
Typical price:$7.17 / Each
Quantity:
WAGO 280-530 Double-deck terminal block
Brand: Wago
Part Number: 280-530
Additional Description: WAGO-280-530 DOUBLE-DECK TERMINAL BLOCK; THROUGH/THROUGH TERMINAL BLOCK; WITH ADDITIONAL JUMPER POSITION ON LOWER LEVEL; SUITABLE FOR EX I APPLICATIONS; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; BLUE/BLUE 51245286
Catalog Description: Double-deck terminal block; Through/through terminal block; with additional jumper position on lower level; suitable for Ex i applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; blue/blue
280-530 Application
Suitable for Ex i applications280-530 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #295460Part Number #280-530UNSPSC39121410UPC04050821293651
