Part Number # 280-543
SKU # 2421937
280-543

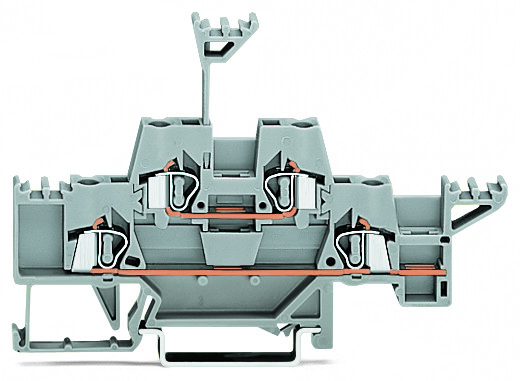

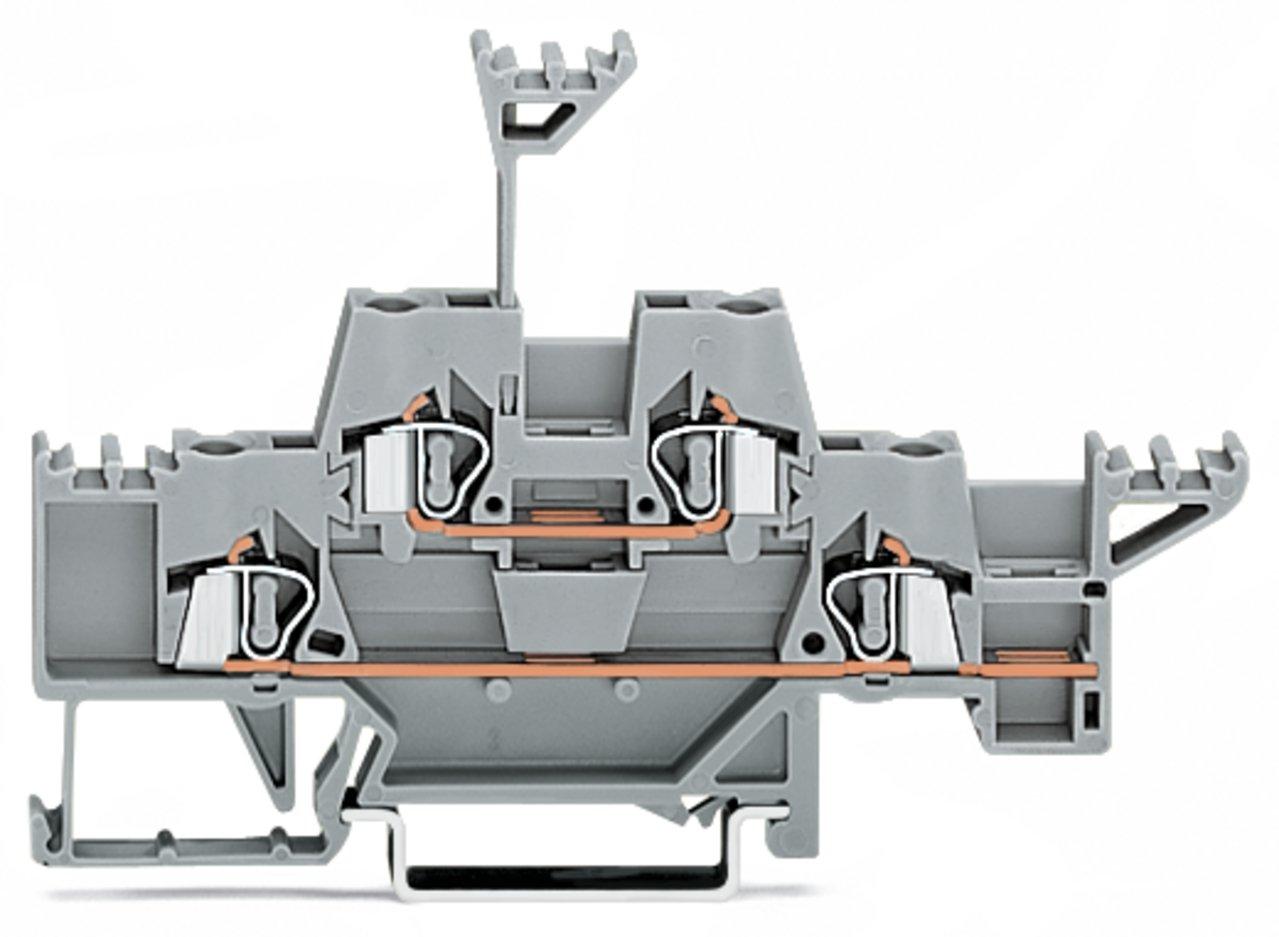

WAGO 280-543 280 Terminal Block, 500 V, 20 A, 28 to 12 AWG Wire, DIN Rail Mounting
Part Number # 280-543
SKU # 2421937
Wago 280-543 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 280-543 |
| SKU #: | 2421937 |
| Amperage Rating: | 20 A |
| Dimensions: | 3.74 in H x 0.197 in W x 2.303 in D |
| Series: | 280 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Terminal Type: | Through |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Cage Clamp |
| Country of origin: | CN |
| Material: | Polyamide 6.6 |
| Mounting type: | DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821293705 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 280-543 280 Terminal Block, 500 V, 20 A, 28 to 12 AWG Wire, DIN Rail Mounting
Brand: Wago
Part Number: 280-543
Additional Description: WAGO-280-543 DOUBLE-DECK TERMINAL BLOCK; THROUGH/THROUGH TERMINAL BLOCK; WITH ADDITIONAL JUMPER POSITION ON LOWER LEVEL; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM; CAGE CLAMP; 2,50 MM; GRAY/GRAY 51245290 GRA/GRA
Catalog Description: Double-deck terminal block; Through/through terminal block; with additional jumper position on lower level; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray/gray
280-543 Standards
RoHS Compliant|IEC/EN 60947-7-1SKU #2421937Part Number #280-543UNSPSC39121410UPC04050821293705
Image provided may only be a representation of final product and may include optional equipment
