Part Number # 280-549
SKU # 833345

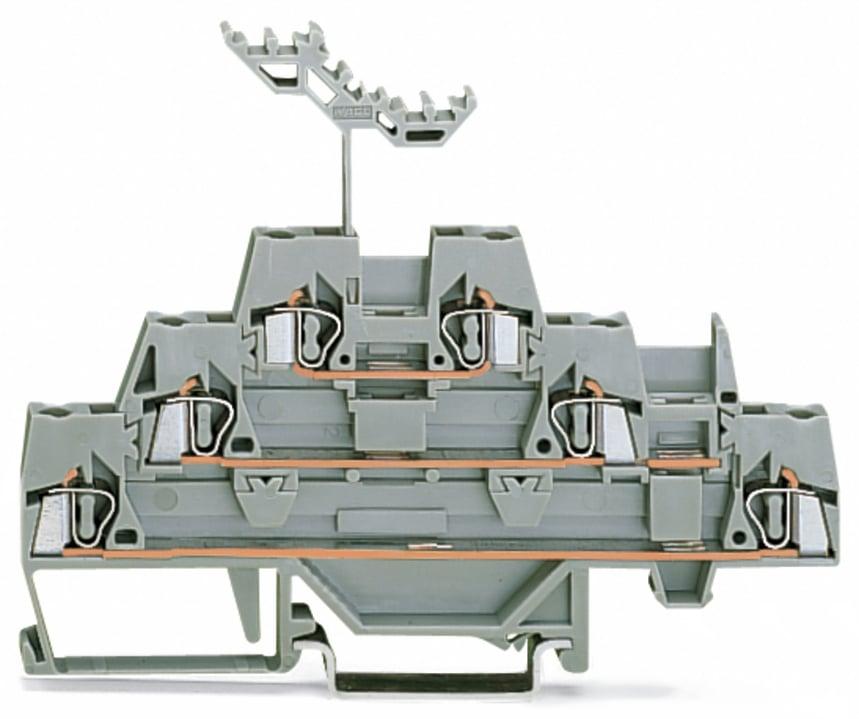

Image provided may only be a representation of
final product and may include optional equipment
280-549
WAGO 280-549 Triple-deck terminal block
Part Number # 280-549
SKU # 833345
Wago 280-549 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 280-549 |
| SKU #: | 833345 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 3.01 in H x 0.197 in W x 4.05 in D |
| Series: | 280 |
| Terminal Type: | Through |
| Type: | Triple-Deck |
| Wire Size: | 28 to 12, 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Cage Clamp |
| Country of origin: | CN, US |
| Depth: | 103 mm / 4.055 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 Insulation |
| Mounting type: | DIN Rail, DIN-35 rail |
| Rated current: | 20 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 6 |
| Weight: | 18.390 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821293729 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 280-549 Triple-deck terminal block
Brand: Wago
Part Number: 280-549
WAGO Terminal Block, Triple-Deck, Series: 280, 500 VAC, 20 A, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, Through Terminal, DIN Rail Mount, Cage Clamp, Polyamide 6.6 Insulation, Gray, 3.01 in H x 0.197 in W x 4.05 in D
Additional Description: WAGO-280-549 TRIPLE-DECK TERMINAL BLOCK; THROUGH/THROUGH/THROUGH TERMINAL BLOCK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GRAY/GRAY/GRAY 51245292
Catalog Description: Triple-deck terminal block; Through/through/through terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray/gray/gray
280-549 Item Features
- 6 terminals
- 3 potentials, front-entry wiring, 6kV impulse voltage, 3 deg pollution
- Horizontal design, center marking
- CAGE CLAMP connection technology, operating tool actuation
- Copper conductor
- 500 V rated voltage, 300 V UL/CSA, 20 A rated current, 15 A UL, 20 A CSA
280-549 Standards
RoHS CompliantSKU #833345Part Number #280-549UNSPSC39121410UPC04050821293729
