Part Number # 280-557
SKU # 2135084
Image Disclaimers Message
Brand: Wago
280-557

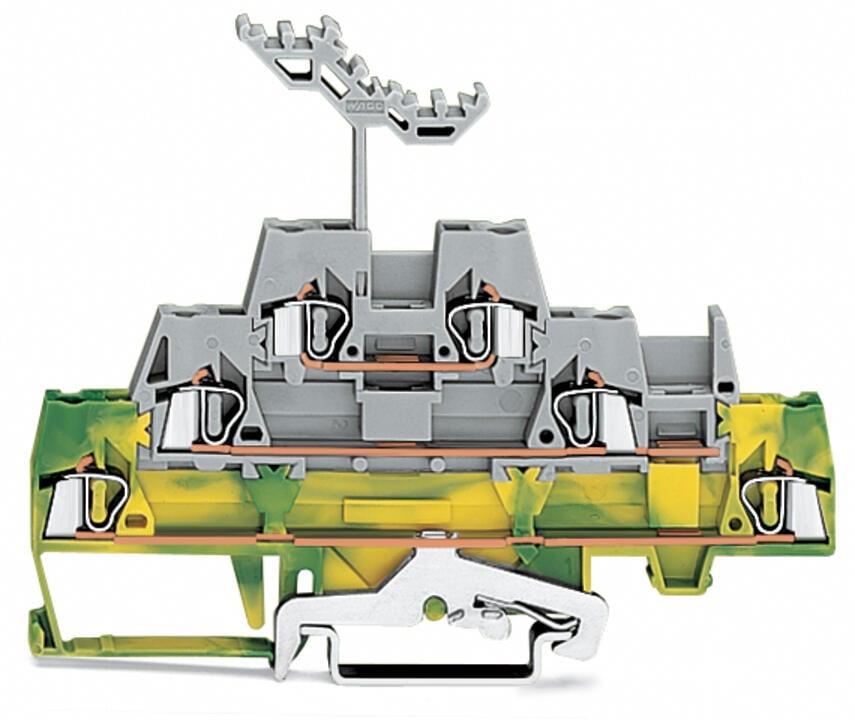

WAGO 280-557 Triple-deck terminal block
Part Number # 280-557
SKU # 2135084
$20.44 / Each
Typical price:$22.14 / Each
Wago 280-557 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 280-557 |
| SKU #: | 2135084 |
| Amperage Rating: | 20 A |
| Dimensions: | 4.055 in H x 0.197 in W x 3.012 in D |
| Number of Poles: | 3 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Gray/Green/Yellow, Green-yellow/gray/gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 103 mm / 4.055 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 20 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 6 |
| Weight: | 21.754 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821293750 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$20.44 / Each
Typical price:$22.14 / Each
Quantity:
- WAGO, 280-557, Deck Terminal Block, Operating Tool, 500 V, 20 A, 3 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Gray/Green/Yellow, 4.055 in H x 0.197 in W x 3.012 in D Dimensions
280-557 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2135084Part Number #280-557UNSPSC39121410UPC04050821293750
