Part Number # 280-577
SKU # 2308182
Image Disclaimers Message
280-577

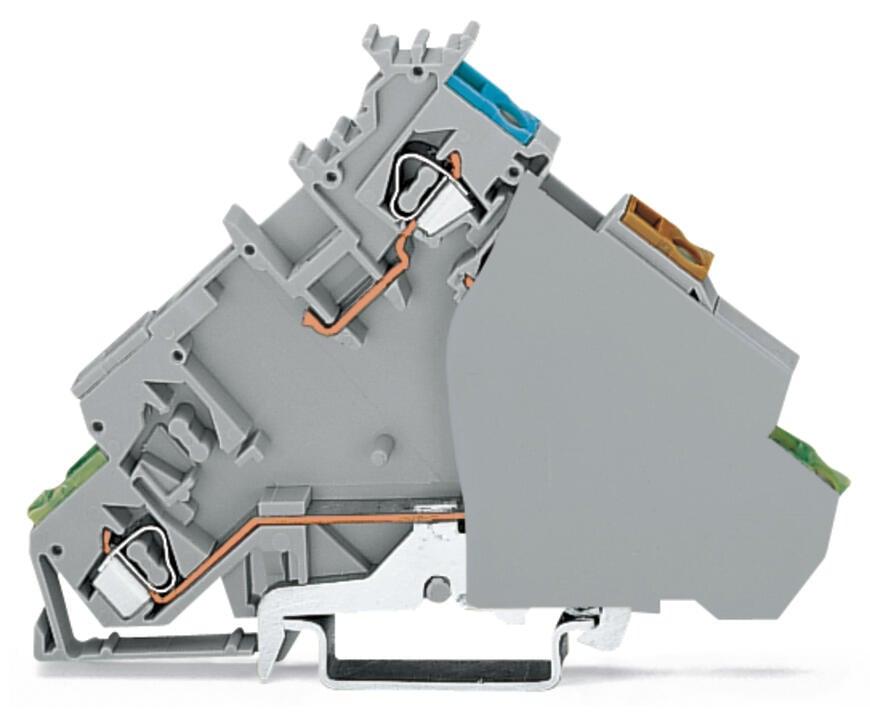

WAGO 280-577 4-conductor sensor supply terminal block
Part Number # 280-577
SKU # 2308182
$14.05 / Each
Typical price:$15.22 / Each
Wago 280-577 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 280-577 |
| SKU #: | 2308182 |
| Amperage Rating: | 20 A |
| Dimensions: | 3.563 in H x 0.236 in W x 2.5 in D |
| Number of Poles: | 3 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 90.5 mm / 3.563 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 20 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 17.313 g |
| Width: | 6 mm / 0.236 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454093891 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$14.05 / Each
Typical price:$15.22 / Each
Quantity:
WAGO 280-577 4-conductor sensor supply terminal block
Brand: Wago
Part Number: 280-577
Additional Description: WAGO-280-577 4-CONDUCTOR SENSOR SUPPLY TERMINAL BLOCK; WITH GROUND CONTACT; WITH END PLATE; WITH COLORED CONDUCTOR ENTRIES; 2.5 MM; CAGE CLAMP; 2,50 MM; GRAY 51161687 BLOCK; WITH GROUND CONTACT; WITH ENTRIES; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GRAY PL 51161687
Catalog Description: 4-conductor sensor supply terminal block; with ground contact; with end plate; with colored conductor entries; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
280-577 Standards
RoHS CompliantSKU #2308182Part Number #280-577UNSPSC39121410UPC04045454093891
