Brand: Wago

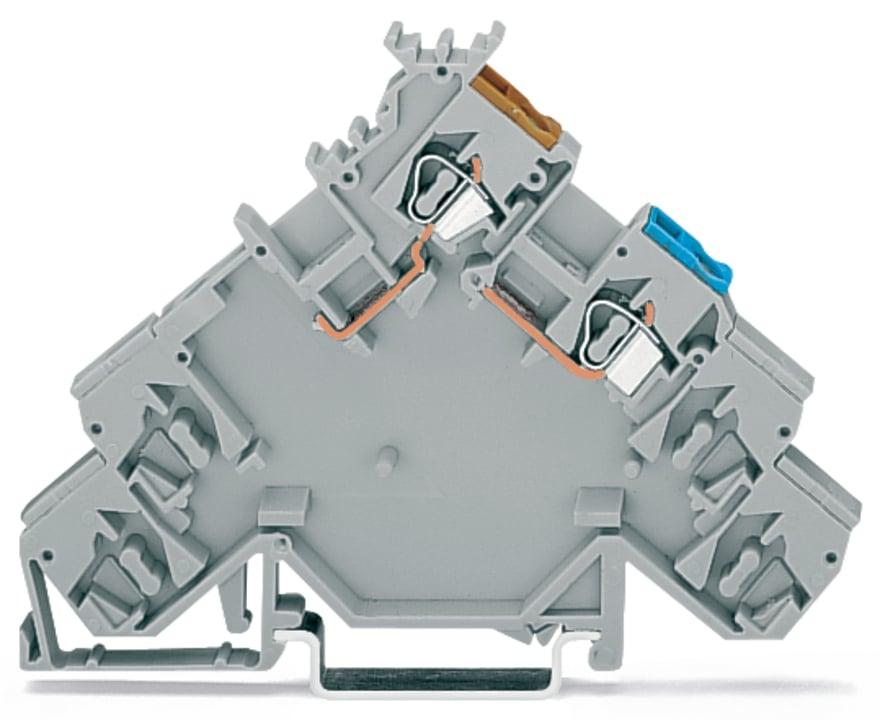

WAGO 280-584 4-conductor sensor supply terminal block
Image Disclaimers Message
Brand: Wago
WAGO 280-584 4-conductor sensor supply terminal block
Brand: Wago
WAGO 280-584 4-conductor sensor supply terminal block
Part #:280-584
SKU #: 2293035
$5.94/EA
Key Features
Part #:280-584
SKU #: 2293035
Brand: Wago
Amperage Rating: 20 A
Dimensions: 3.563in H x 0.197 in W x 2.5 in D
Series: 280
Temperature Rating (Degrees F): -60 to 105 deg C
Type: 4-Conductor
$5.94/EA
Specifications
Brand: Wago
Amperage Rating: 20 A
Dimensions: 3.563in H x 0.197 in W x 2.5 in D
Series: 280
Temperature Rating (Degrees F): -60 to 105 deg C
Type: 4-Conductor
Voltage Rating: 400 V
Wire Size: 24 to 16 AWG
Actuation type: Operating tool
Color: Gray
Connection technology: CAGE CLAMP®
Connection type: Clamp
Country of origin: DE
Depth: 90.5 mm / 3.563 inch
Insulation material: Polyamide (PA66)
Material: Polyamide
Mounting type: 35 mm DIN Rail, DIN-35 rail
Rated current: 20 A
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 2
Weight: 9.900 g
Width: 5 mm / 0.197 inch
Wiring type: Front-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121410
UPC: 04044918637275
WAGO 280-584 4-conductor sensor supply terminal block
Additional Description: WAGO-280-584 (D) 4-CONDUCTOR SENSOR SUPPLY TERMINAL BLOCK; WITH COLORED CONDUCTOR ENTRIES; 2.5 MM; CAGE CLAMP; 2,50 MM; GRAY 51139500 BLOCK; WITH COLORED CONDUCTOR ENTRIES; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GRAY 51139500
Catalog Description: 4-conductor sensor supply terminal block; with colored conductor entries; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
Item FeaturesRoHS Compliant
