Part Number # 280-602
SKU # 2137062
Image Disclaimers Message
280-602

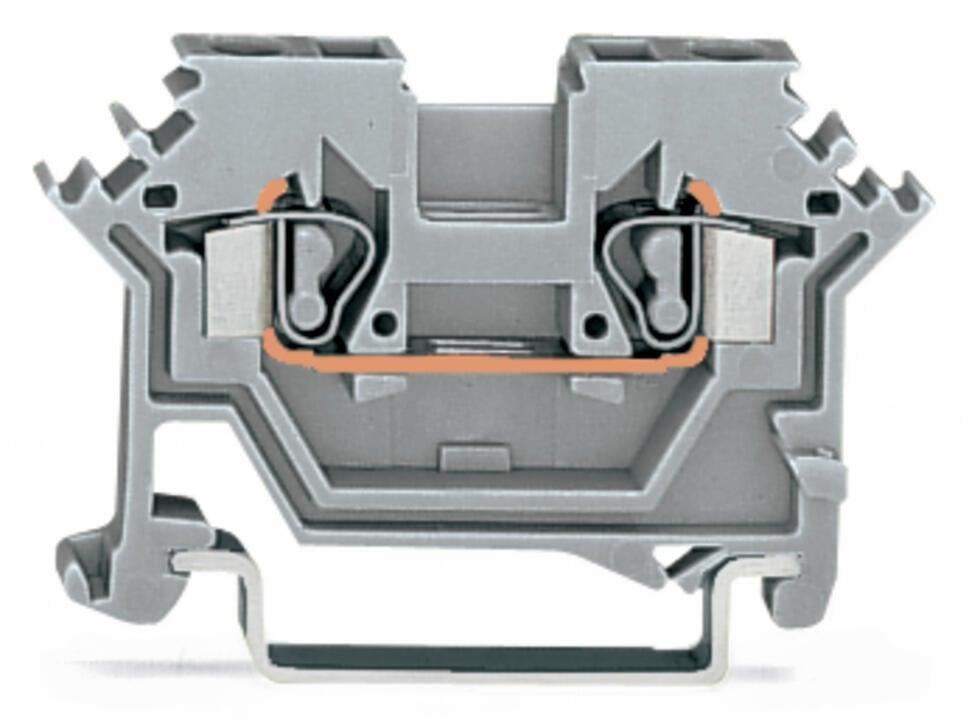

WAGO 280-602 2-conductor through terminal block
Part Number # 280-602
SKU # 2137062
$2.42 / Each
Typical price:$2.62 / Each
Wago 280-602 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 280-602 |
| SKU #: | 2137062 |
| Amperage Rating: | 24 A |
| Dimensions: | 1.969 in H x 0.197 in W x 1.102 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Blue |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 50 mm / 1.969 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 4.731 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918465328 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.42 / Each
Typical price:$2.62 / Each
Quantity:
- WAGO, 280-602, Conductor Terminal Block, Operating Tool, 800 V, 24 A, 1 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Blue, 1.969 in H x 0.197 in W x 1.102 in D Dimensions
280-602 Application
Suitable for Ex i applications280-602 Standards
CSA 22.2 No 158|IEC/EN 60947-7-1|RoHS CompliantSKU #2137062Part Number #280-602UNSPSC39121410UPC04044918465328
