Part Number # 280-626
SKU # 1980630
Image Disclaimers Message
280-626

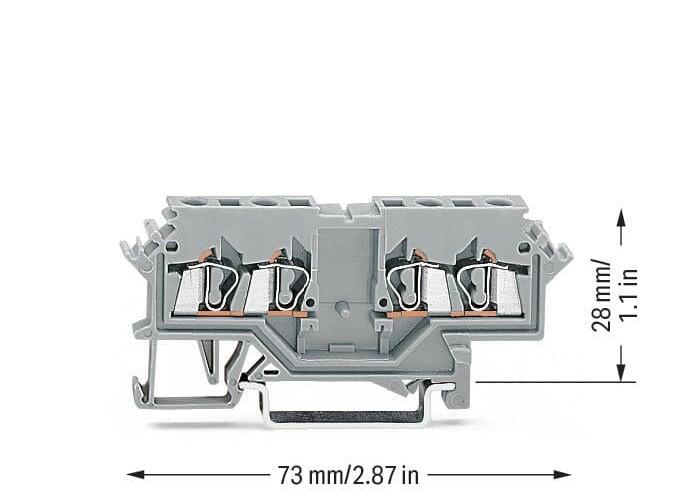

WAGO 280-626 Double potential terminal block
Part Number # 280-626
SKU # 1980630
Wago 280-626 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 280-626 |
| SKU #: | 1980630 |
| Amperage Rating: | 24 A |
| Dimensions: | 2.874 in H x 0.197 in W x 1.102 in D |
| Number of Poles: | 2 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 73 mm / 2.874 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 8.187 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918395687 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 280-626 Double potential terminal block
Brand: Wago
Part Number: 280-626
Wago 280-626 Terminal Block, 280 Series, 4 Terminals, Wire Size: 28 - 12 AWG, 24 AMP, 800 V, Gray, TS Din 35 Rail Mount, Cage Clamp, Front-Entry Wiring Connection, 0.197 IN Width X 2.87 IN Depth X 1.1 IN Height, Strip Length: 0.33 IN, RoHS Compliant, ABS 05-HG476175/3-PDA, BV 07436/Co, CCA NL5855, CSA 154112-1536071, DNV E-10423, GL 17295-00HH, KEMA 2082859.07, LR 91/20112(E6), PRS TE/1718/880590/08, RMR 11130002, UL E45172 Listed
Additional Description: WAGO-280-626 DOUBLE POTENTIAL TERMINAL BLOCK; 2.5 MM; LATERAL MARKER SLOTS; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP; 2,50 MM; GRAY 51121766 2.5 MM ; LATERAL MARKER SLOTS; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP ; 2,50 MM ; GRAY ENTRY BLOCK GREY 51121766
Catalog Description: Double potential terminal block; 2.5 mm²; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2,50 mm²; gray
280-626 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #1980630Part Number #280-626UNSPSC39121410UPC04044918395687
