Part Number # 280-656
SKU # 1739159
Image Disclaimers Message
Brand: Wago
280-656

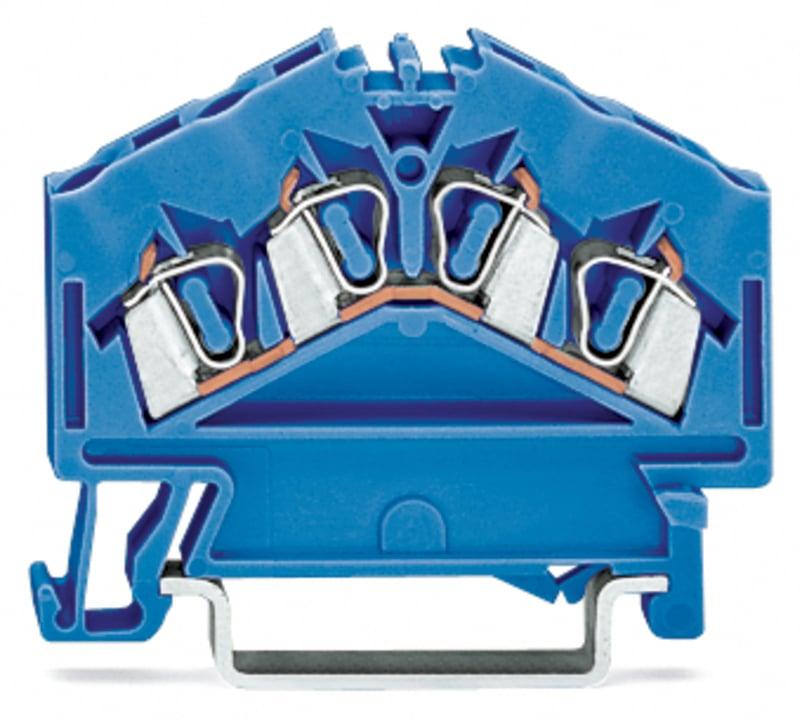

WAGO 280-656 4-conductor through terminal block
Part Number # 280-656
SKU # 1739159
$2.81 / Each
Typical price:$3.35 / Each
Wago 280-656 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 280-656 |
| SKU #: | 1739159 |
| Amperage Rating: | 24 A |
| Dimensions: | 1.988 in H x 0.197 in W x 1.437 in D |
| Series: | 280 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Terminal Type: | Through |
| Type: | 4-Conductor |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Blue |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Cage Clamp |
| Country of origin: | DE |
| Depth: | 50.5 mm / 1.988 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 7.331 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918456982 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.81 / Each
Typical price:$3.35 / Each
Quantity:
WAGO 280-656 4-conductor through terminal block
Brand: Wago
Part Number: 280-656
Additional Description: WAGO-280-656 4-CONDUCTOR THROUGH TERMINAL BLOCK; 2.5 MM; SUITABLE FOR EX I APPLICATIONS; CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP; 2,50 MM; BLUE 51126974 DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP ; 2,50 MM ; BLUE BLUE 51126974
Catalog Description: 4-conductor through terminal block; 2.5 mm²; suitable for Ex i applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2,50 mm²; blue
280-656 Application
Suitable for Ex i Applications280-656 Standards
RoHS Compliant|UL94SKU #1739159Part Number #280-656UNSPSC39121410UPC04044918456982
