Part Number # 280-871
SKU # 2323934
Image Disclaimers Message
280-871

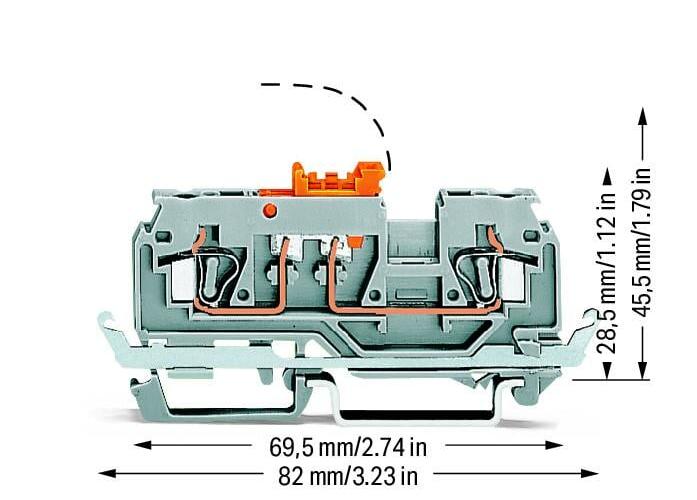

WAGO 280-871 2-conductor disconnect/test terminal block
Part Number # 280-871
SKU # 2323934
$8.67 / Each
Typical price:$9.39 / Each
Wago 280-871 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 280-871 |
| SKU #: | 2323934 |
| Amperage Rating: | 16 A |
| Dimensions: | 3.228 in H x 0.197 in W x 1.122 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 82 mm / 3.228 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 16 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 11.436 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821180975 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.67 / Each
Typical price:$9.39 / Each
Quantity:
- WAGO, 280-871, Test Terminal Block, Operating Tool, 250 V, 16 A, 2 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, -35 to 85 deg C, Polyamide, Gray, 3.228 in H x 0.197 in W x 1.122 in D Dimensions
280-871 Item Features
- Solid conductor 28 to 12 AWG, Fine-stranded conductor 28 to 12 AWG
280-871 Standards
RoHS CompliantSKU #2323934Part Number #280-871UNSPSC39121410UPC04050821180975
