Part Number # 280-940/281-410
SKU # 2261858
Image Disclaimers Message
280-940/281-410

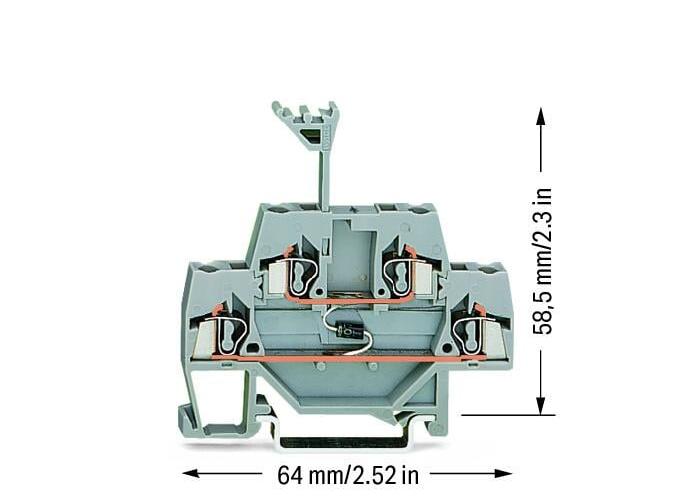

WAGO 280-940/281-410 Component terminal block
Part Number # 280-940/281-410
SKU # 2261858
$17.83 / Each
Typical price:$19.32 / Each
Wago 280-940/281-410 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 280-940/281-410 |
| SKU #: | 2261858 |
| Amperage Rating: | 0.5 A |
| Dimensions: | 2.52 in H x 0.197 in W x 2.303 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 14 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 64 mm / 2.52 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 0.5 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Total number of connection points: | 4 |
| Weight: | 10.270 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454196592 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$17.83 / Each
Typical price:$19.32 / Each
Quantity:
WAGO 280-940/281-410 Component terminal block
Brand: Wago
Part Number: 280-940/281-410
Additional Description: WAGO-280-940/281-410 COMPONENT TERMINAL BLOCK; DOUBLE-DECK; WITH DIODE 1N4007; ANODE, BOTTOM; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM; CAGE CLAMP; 2,50 MM; GRAY 51168518 DOUBLE-DECK; WITH DIODE 1N4007; AND 35 X 7.5; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GRAY 51168518
Catalog Description: Component terminal block; double-deck; with diode 1N4007; Anode, bottom; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
280-940/281-410 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2261858Part Number #280-940/281-410UNSPSC39121410UPC04045454196592
