Part Number # 280-944/281-589
SKU # 2400907
280-944/281-589
WAGO 280-944/281-589 280 Terminal Block, 24 VDC, 20 A, 28 to 14 AWG Wire, 4 Poles, 35 mm DIN Rail Mounting
Part Number # 280-944/281-589
SKU # 2400907
Wago 280-944/281-589 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 280-944/281-589 |
| SKU #: | 2400907 |
| Amperage Rating: | 20 A |
| Dimensions: | 1.55 in H x 0.39 in W x 2.52 in D |
| Number of Poles: | 4 |
| Series: | 280 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Wire Size: | 28 to 14 AWG |
| Connection type: | Cage Clamp |
| Country of origin: | DE |
| Material: | Polyamide (PA66) |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821515081 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 280-944/281-589 280 Terminal Block, 24 VDC, 20 A, 28 to 14 AWG Wire, 4 Poles, 35 mm DIN Rail Mounting
Brand: Wago
Part Number: 280-944/281-589
WAGO, 280-944/281-589, Terminal Block, Series: 280, 24 VDC, 20 A, 4 Pole, 28 to 14 AWG Wire, 0.31 to 0.35 in Wire Strip Length, 35 mm DIN Rail Mounting, Cage Clamp Connection, -35 to 85 deg C, Polyamide (PA66), Gray, 1.55 in H x 0.39 in W x 2.52 in D Dimensions
Additional Description: WAGO-280-944/281-589 COMPONENT TERMINAL BLOCK; 51263501 1.5KE33C TVS DIODE; 24 VDC; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GRAY
Catalog Description: Component terminal block; double-deck; with end plate; with 1.5KE33C TVS diode; 24 VDC; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
280-944/281-589 Item Features
- Protect your system against overvoltage
- Slim, space-saving design
- Control operational costs by preventing expensive, unplanned downtime
- High operational reliability and system uptime
280-944/281-589 Standards
RoHS CompliantSKU #2400907Part Number #280-944/281-589UNSPSC39121410UPC04050821515081

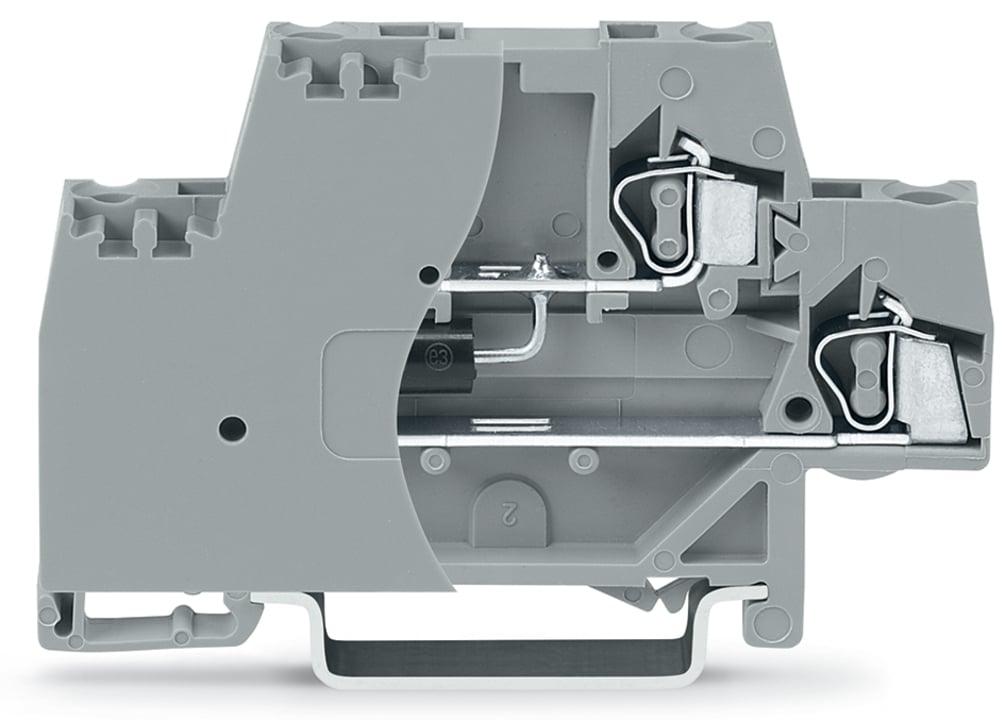

Image provided may only be a representation of final product and may include optional equipment
