Part Number # 280-946
SKU # 1739160
Image provided may only be a representation of
final product and may include optional equipment
280-946

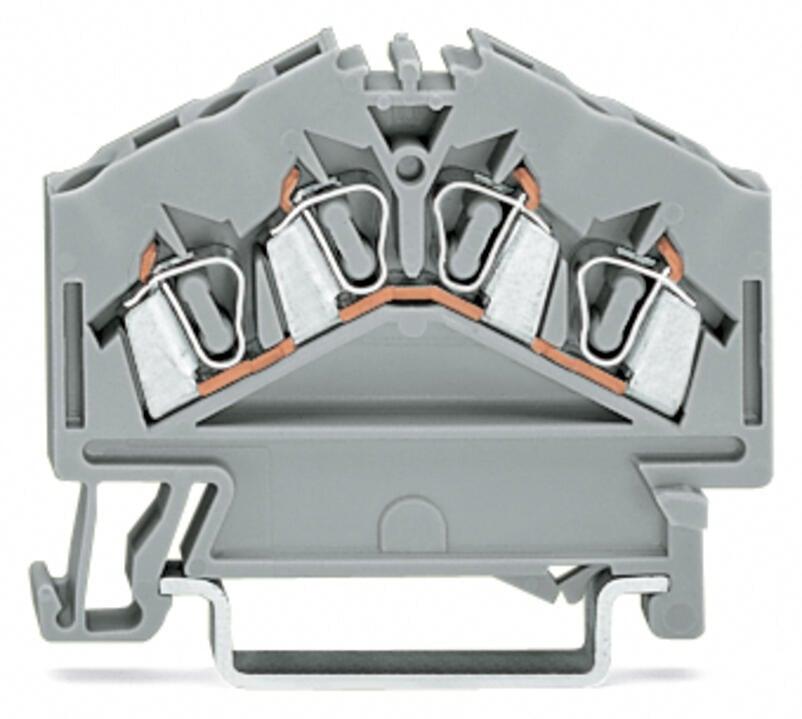

WAGO 280-946 4-conductor through terminal block
Part Number # 280-946
SKU # 1739160
$3.17 / Each
Typical price:$3.43 / Each
Wago 280-946 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 280-946 |
| SKU #: | 1739160 |
| Amperage Rating: | 24 A |
| Dimensions: | 1.988 in H x 0.197 in W x 1.437 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 50.5 mm / 1.988 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 7.371 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918457132 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.17 / Each
Typical price:$3.43 / Each
Quantity:
WAGO 280-946 4-conductor through terminal block
Brand: Wago
Part Number: 280-946
Additional Description: WAGO-280-946 4-CONDUCTOR THROUGH TERMINAL BLOCK; 2.5 MM; CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP; 2,50 MM; ORANGE 51126979 DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP ; 2,50 MM ; ORANGE ORNG 51126979
Catalog Description: 4-conductor through terminal block; 2.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2,50 mm²; orange
280-946 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #1739160Part Number #280-946UNSPSC39121410UPC04044918457132
