280-993

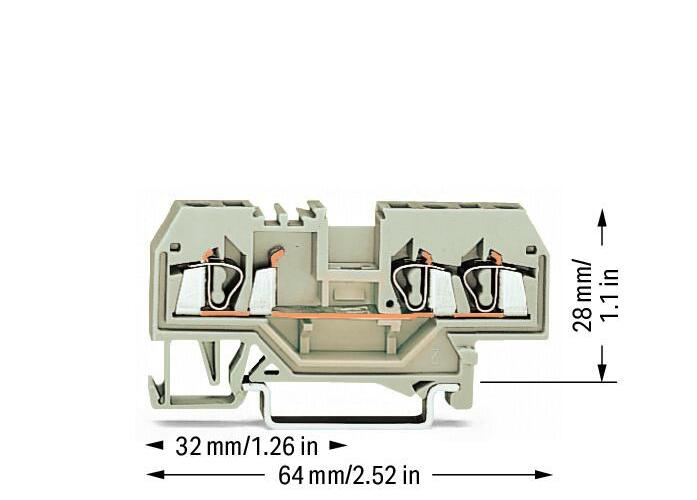

WAGO 280-993 3-conductor through terminal block
Part Number # 280-993
SKU # 2147237
$3.01 / Each
Typical price:$3.26 / Each
Wago 280-993 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 280-993 |
| SKU #: | 2147237 |
| Dimensions: | 2.52 in H x 0.197 in W x 1.102 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Light gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 64 mm / 2.52 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 3 |
| Weight: | 7.576 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918391474 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.01 / Each
Typical price:$3.26 / Each
Quantity:
- WAGO, 280-993, Conductor Terminal Block, Operating Tool, 1 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Light Gray, 2.52 in H x 0.197 in W x 1.102 in D Dimensions
280-993 Application
Suitable for Ex e II applications280-993 Standards
CSA 22.2 No 158|IEC/EN 60947-7-1|RoHS CompliantSKU #2147237Part Number #280-993UNSPSC39121410UPC04044918391474
