Part Number # 281-107
SKU # 2234373
281-107

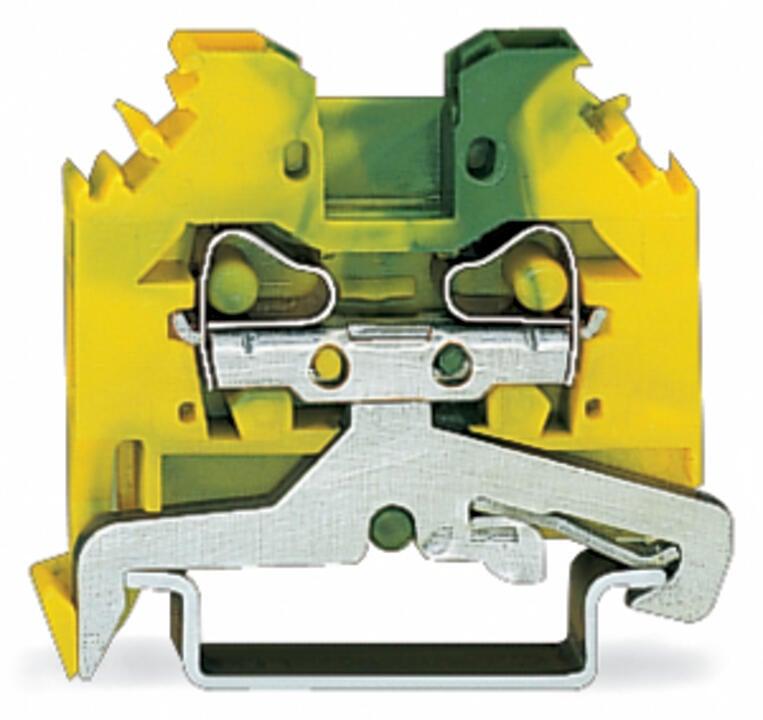

WAGO 281-107 2-conductor ground terminal block
Part Number # 281-107
SKU # 2234373
$8.01 / Each
Typical price:$8.68 / Each
Wago 281-107 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 281-107 |
| SKU #: | 2234373 |
| Dimensions: | 1.772 in H x 0.236 in W x 1.28 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | IN |
| Depth: | 45 mm / 1.772 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 10.733 g |
| Width: | 6 mm / 0.236 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143309271 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.01 / Each
Typical price:$8.68 / Each
Quantity:
WAGO 281-107 2-conductor ground terminal block
Brand: Wago
Part Number: 281-107
Additional Description: WAGO-281-107 RL MTD TRM BLK 2CON SD ENTRY GROUND 51160748
Catalog Description: 2-conductor ground terminal block; 4 mm²; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 4,00 mm²; green-yellow
281-107 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2234373Part Number #281-107UNSPSC39121410UPC04055143309271
