Part Number # 281-603/281-400
SKU # 2403274
281-603/281-400

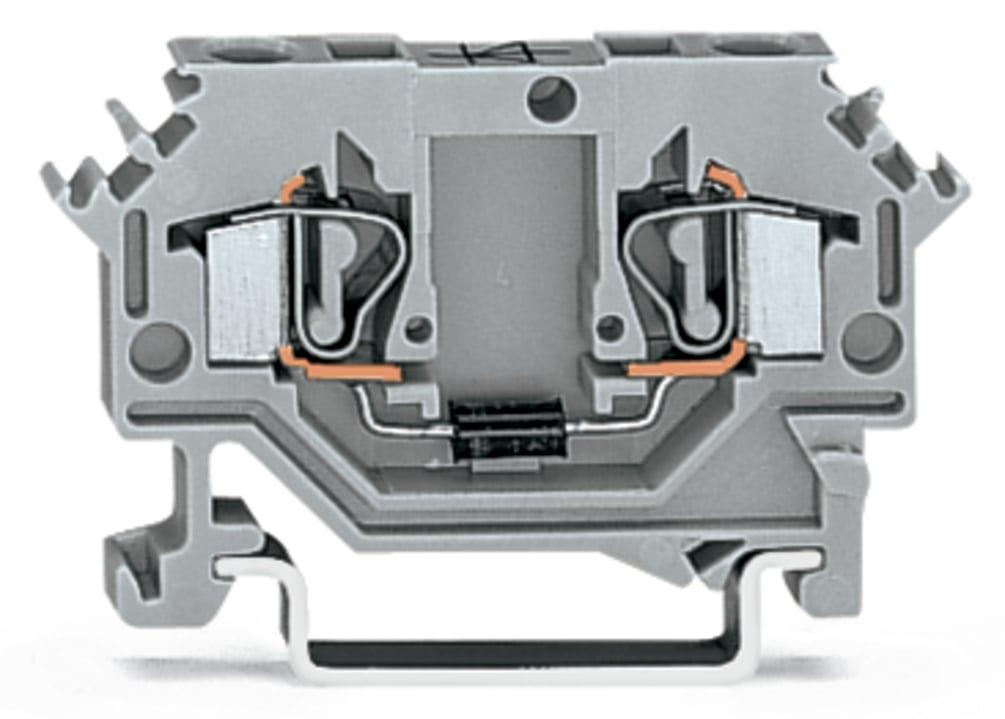

WAGO 281-603/281-400 281 2-Conductor Terminal Block
Part Number # 281-603/281-400
SKU # 2403274
Wago 281-603/281-400 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 281-603/281-400 |
| SKU #: | 2403274 |
| Amperage Rating: | 1.5 A |
| Dimensions: | 2.08 in H x 0.23 in W x 1.14 in D |
| Number of Poles: | 2 |
| Series: | 281 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | 2-Conductor |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Cage Clamp |
| Country of origin: | DE |
| Material: | Polyamide (PA66) |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454196912 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 281-603/281-400 281 2-Conductor Terminal Block
Brand: Wago
Part Number: 281-603/281-400
WAGO, 281-603/281-400, Terminal Block, 2-Conductor, Series: 281, 250 V, 1.5 A, 2 Pole, 28 to 12 AWG Wire, 0.35 to 0.39 in Wire Strip Length, 35 mm DIN Rail Mounting, Cage Clamp Connection, -35 to 85 deg C, Polyamide (PA66), Gray, 2.08 in H x 0.23 in W x 1.14 in D Dimensions
Additional Description: WAGO-281-603/281-400 COMPONENT TERMINAL BLOCK; 51168550 ANODE, LEFT SIDE; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 4 MM ; CAGE CLAMP ; 4,00 MM ; GRAY
Catalog Description: Component terminal block; 2-conductor; with diode 1N5408; anode, left side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®; 4,00 mm²; gray
281-603/281-400 Item Features
- 2 Clamping Points
- 1 Potentials
- Front-entry wiring
281-603/281-400 Standards
RoHS CompliantSKU #2403274Part Number #281-603/281-400UNSPSC39121410UPC04045454196912
