281-603/281-401

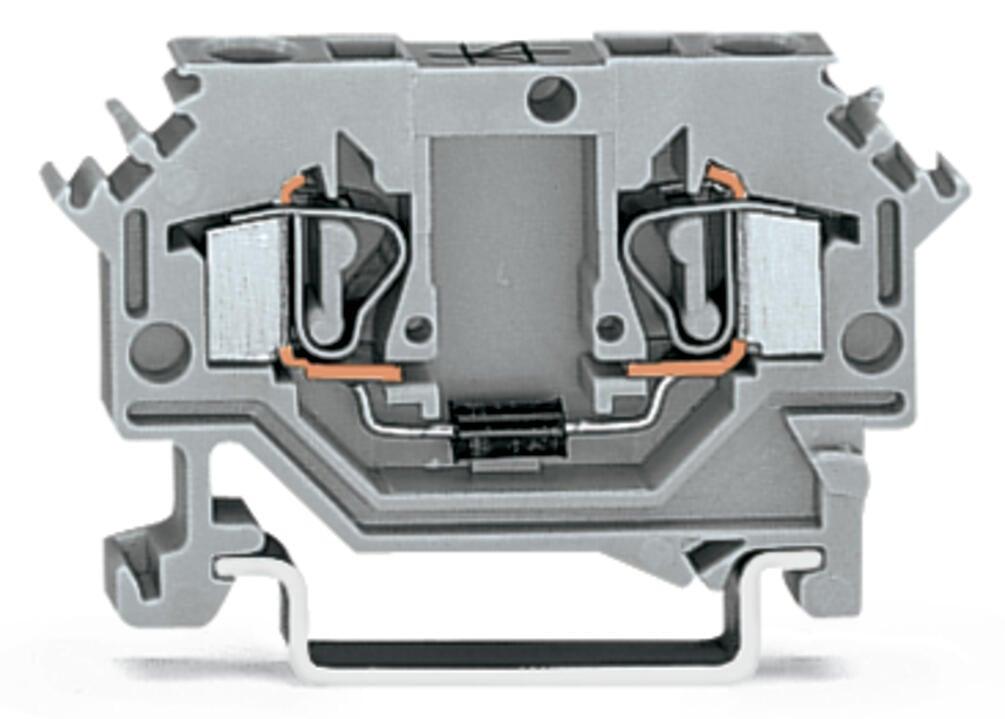

WAGO 281-603/281-401 Component terminal block
Part Number # 281-603/281-401
SKU # 2151260
$1829.00 / 100Each
Typical price:$1981.00 / Each
Wago 281-603/281-401 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 281-603/281-401 |
| SKU #: | 2151260 |
| Amperage Rating: | 1.5 A |
| Dimensions: | 2.087 in H x 0.236 in W x 1.142 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 53 mm / 2.087 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 1.5 A |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 7.905 g |
| Width: | 6 mm / 0.236 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454196929 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1829.00 / 100Each
Typical price:$1981.00 / Each
Quantity:
WAGO 281-603/281-401 Component terminal block
Brand: Wago
Part Number: 281-603/281-401
Additional Description: WAGO-281-603/281-401 COMPONENT TERMINAL BLOCK; 2-CONDUCTOR; WITH DIODE 1N5408; ANODE, RIGHT SIDE; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 4 MM; CAGE CLAMP; 4,00 MM; GRAY 51168551 2-CONDUCTOR; WITH DIODE 1N5408; X 15 AND 35 X 7.5; 4 MM ; CAGE CLAMP ; 4,00 MM ; GRAY 51168551
Catalog Description: Component terminal block; 2-conductor; with diode 1N5408; anode, right side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®; 4,00 mm²; gray
281-603/281-401 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2151260Part Number #281-603/281-401UNSPSC39121410UPC04045454196929
