281-620

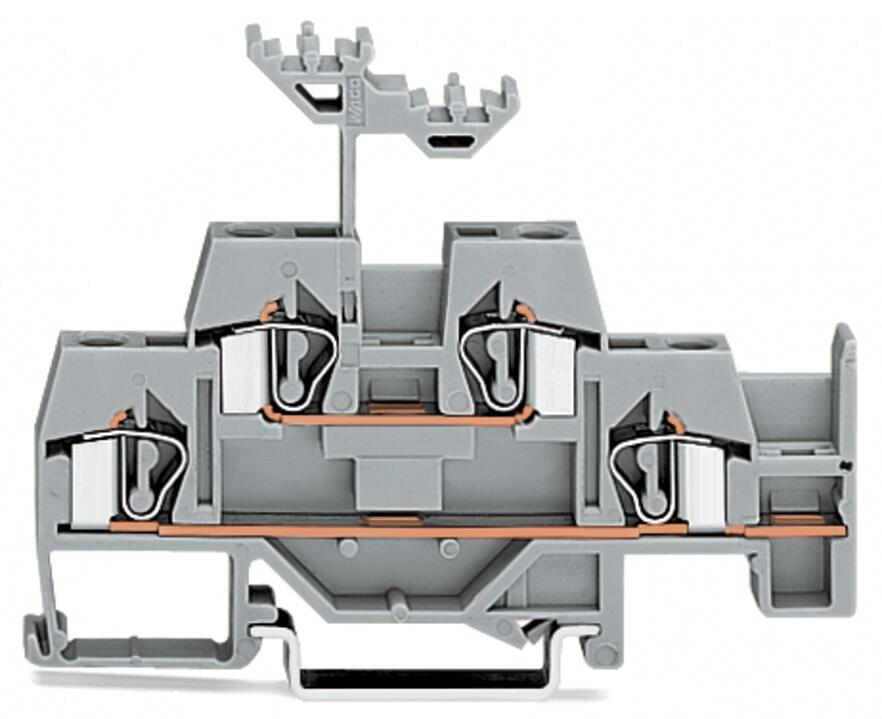

WAGO 281-620 Double-deck terminal block
Part Number # 281-620
SKU # 2223467
$6.58 / Each
Typical price:$7.13 / Each
Wago 281-620 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 281-620 |
| SKU #: | 2223467 |
| Amperage Rating: | 26 A |
| Dimensions: | 3.287 in H x 0.236 in W x 2.303 in D |
| Number of Poles: | 2 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 83.5 mm / 3.287 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 26 A |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 15.389 g |
| Width: | 6 mm / 0.236 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821215028 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.58 / Each
Typical price:$7.13 / Each
Quantity:
- WAGO, 281-620, Deck Terminal Block, Operating Tool, 500 V, 26 A, 2 Pole, 28 to 12 AWG Wire, 0.35 to 0.39 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Gray, 3.287 in H x 0.236 in W x 2.303 in D Dimensions
281-620 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2223467Part Number #281-620UNSPSC39121410UPC04050821215028
