Part Number # 281-623/281-542
SKU # 2324797
Image Disclaimers Message
281-623/281-542

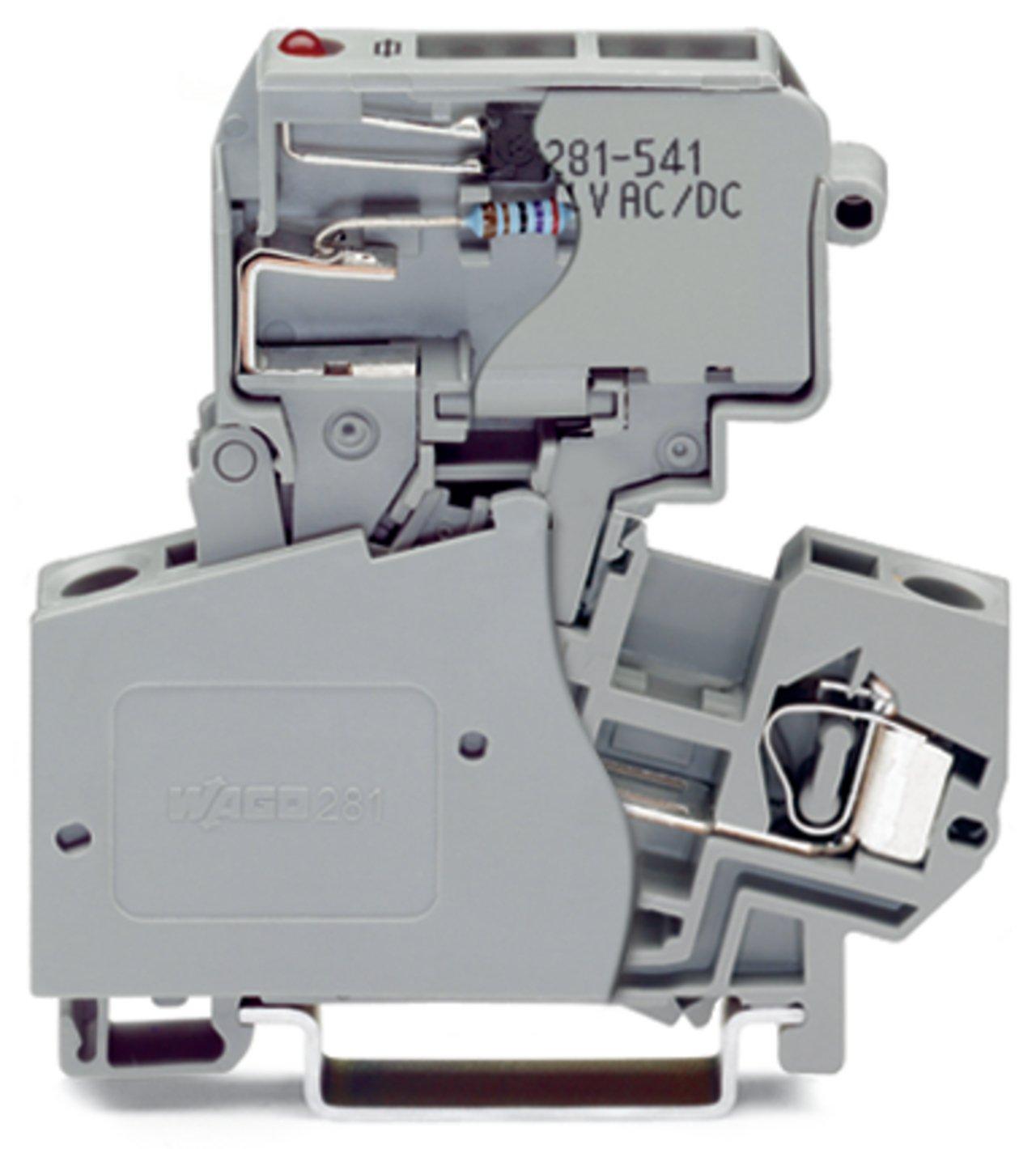

WAGO 281-623/281-542 2-conductor fuse terminal block
Part Number # 281-623/281-542
SKU # 2324797
$1110.46 / 50Each
Typical price:$1203.00 / Each
Wago 281-623/281-542 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 281-623/281-542 |
| SKU #: | 2324797 |
| Amperage Rating: | 10 A |
| Dimensions: | 2.36 in H x 0.39 in W x 2.36 in D |
| Number of Poles: | 2 |
| Series: | 281 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | 2-Conductor |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Cage Clamp |
| Country of origin: | DE |
| Depth: | 60 mm / 2.362 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide (PA66) |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 0.416666666666667 |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 20.234 g |
| Width: | 10 mm / 0.394 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454317904 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1110.46 / 50Each
Typical price:$1203.00 / Each
Quantity:
- WAGO, 281-623/281-542, Terminal Block, 2-Conductor, Series: 281, 800 V, 10 A, 4 W Power, 2 Pole, 28 to 12 AWG Wire, 0.35 to 0.39 in Wire Strip Length, DIN Rail Mounting, Cage Clamp Connection, -35 to 85 deg C, Polyamide (PA66), Gray, 2.36 in H x 0.39 in W x 2.36 in D Dimensions
281-623/281-542 Item Features
- 2 Clamping Points
- 2 Potentials
- Front-entry wiring
281-623/281-542 Standards
RoHS CompliantSKU #2324797Part Number #281-623/281-542UNSPSC39121410UPC04045454317904
