281-624
WAGO 281-624 Disconnect terminal block
Part Number # 281-624
SKU # 2251487
$680.50 / 50Each
Typical price:$737.00 / Each
Wago 281-624 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 281-624 |
| SKU #: | 2251487 |
| Amperage Rating: | 16 A |

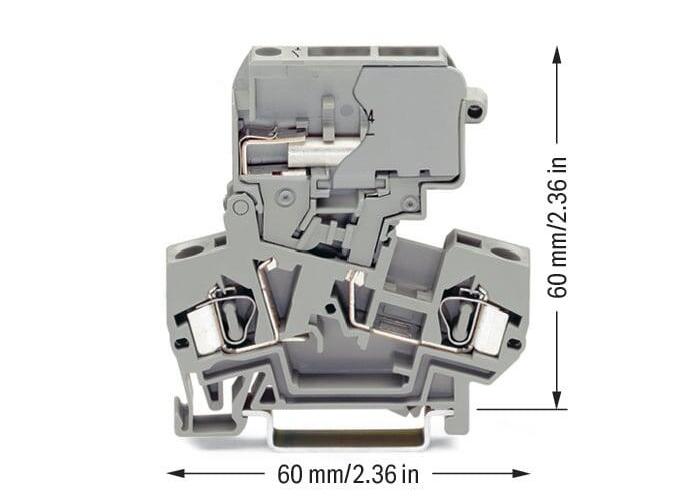

| Dimensions: | 2.362 in H x 0.315 in W x 2.362 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 60 mm / 2.362 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 16 A |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 18.448 g |
| Width: | 8 mm / 0.315 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454871604 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$680.50 / 50Each
Typical price:$737.00 / Each
Quantity:
- WAGO, 281-624, Disconnect Terminal Block, Operating Tool, 800 V, 16 A, 2 Pole, 28 to 12 AWG Wire, 0.35 to 0.39 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, -35 to 85 deg C, Polyamide, Gray, 2.362 in H x 0.315 in W x 2.362 in D Dimensions
281-624 Item Features
- Solid conductor 28 to 12 AWG, Fine-stranded conductor 28 to 12 AWG
281-624 Standards
RoHS CompliantSKU #2251487Part Number #281-624UNSPSC39121410UPC04045454871604
