Part Number # 281-630
SKU # 2223476
Image Disclaimers Message
281-630

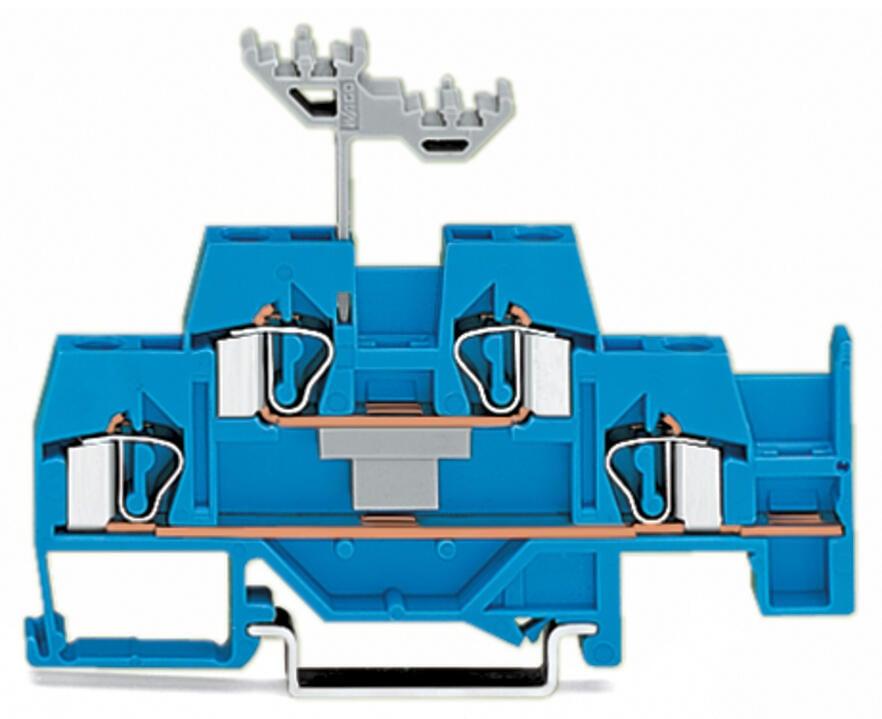

WAGO 281-630 Double-deck terminal block
Part Number # 281-630
SKU # 2223476
Wago 281-630 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 281-630 |
| SKU #: | 2223476 |
| Amperage Rating: | 26 A |
| Dimensions: | 3.287 in H x 0.236 in W x 2.303 in D |
| Number of Poles: | 2 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 83.5 mm / 3.287 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 26 A |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 15.315 g |
| Width: | 6 mm / 0.236 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821703518 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 281-630 Double-deck terminal block
Brand: Wago
Part Number: 281-630
Additional Description: WAGO-281-630 DOUBLE-DECK TERMINAL BLOCK; THROUGH/THROUGH TERMINAL BLOCK; WITH ADDITIONAL JUMPER POSITION ON LOWER LEVEL; SUITABLE FOR EX I APPLICATIONS; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 4 MM; CAGE CLAMP; 4,00 MM; BLUE 51279647 THROUGH/THROUGH TERMINAL BLOCK; WITH ADDITIONAL JUMPER POSITION ON LOWER LEVEL; SUITABLE FOR EX I APPLICATIONS; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 4 MM ; CAGE CLAMP ; 4,00 MM ; BLUE MINIMUM PACKAGE 50 51279647
Catalog Description: Double-deck terminal block; Through/through terminal block; with additional jumper position on lower level; suitable for Ex i applications; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; 4,00 mm²; blue
281-630 Application
Suitable for Ex i applications281-630 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2223476Part Number #281-630UNSPSC39121410UPC04050821703518
