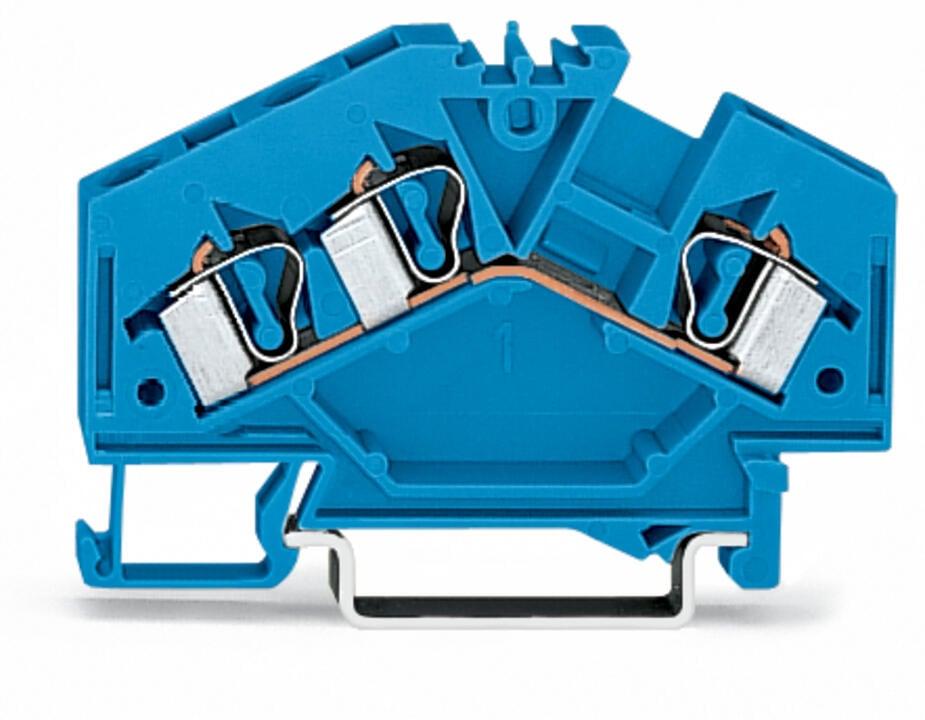

WAGO 281-651 3-conductor through terminal block
Part Number # 281-651
SKU # 2207958
Wago 281-651 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 281-651 |
| SKU #: | 2207958 |
| Amperage Rating: | 32 A |
| Dimensions: | 2.421 in H x 0.236 in W x 1.457 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Blue |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | PL |
| Depth: | 61.5 mm / 2.421 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 32 A |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 3 |
| Weight: | 10.192 g |
| Width: | 6 mm / 0.236 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918323901 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 281-651 3-conductor through terminal block
Brand: Wago
Part Number: 281-651
Wago 281-651 Terminal Block, 281 Series, Through, 3 Terminals, Wire Size: 28 - 12 AWG, 32 AMP, UL: 20 AMP, CSA: 25 AMP, 800 V, UL/CSA: 600 V, Blue, TS Din 35 Rail Mount, Cage Clamp, Angled Wiring Connection, 0.236 IN Width X 2.42 IN Depth X 1.46 IN Height, Strip Length: 0.37 IN, RoHS Compliant, ABS 05-HG476175/3-PDA, BV 07436/Co, CCA NL5591/1, CSA 154112-1505034, DNV E-10423, GL17295-00HH, KEMA 2076376.01, KR HMB05880-EL001, LR 91/20112(E6), PRS TE/1718/880590/08, RMR 11130002, UL E45172 Listed,
Additional Description: WAGO-281-651 3-CONDUCTOR THROUGH TERMINAL BLOCK; 4 MM; SUITABLE FOR EX I APPLICATIONS; CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP; 4,00 MM; BLUE 51115560 4 MM ; SUITABLE FOR EX I DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP ; 4,00 MM ; BLUE BLUE 51115560
Catalog Description: 3-conductor through terminal block; 4 mm²; suitable for Ex i applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 4,00 mm²; blue
281-651 Application
Suitable for Ex i applications281-651 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2207958Part Number #281-651UNSPSC39121410UPC04044918323901
