Brand: Wago

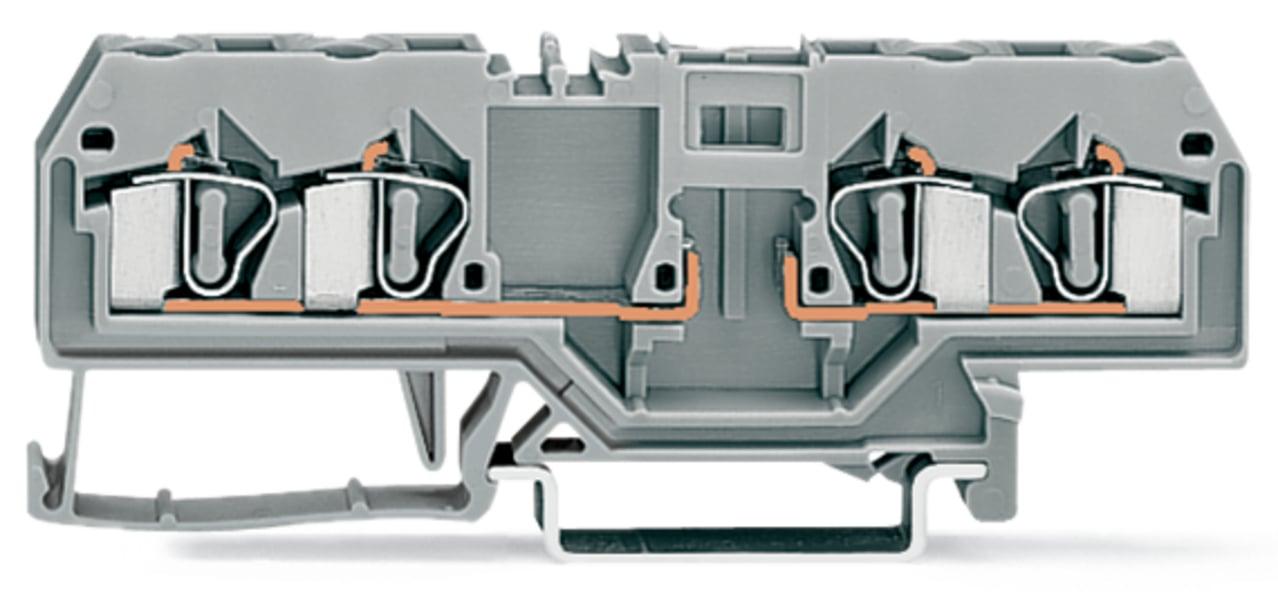

WAGO 281-656 4-conductor carrier terminal block
Image Disclaimers Message
Brand: Wago
WAGO 281-656 4-conductor carrier terminal block
Brand: Wago
WAGO 281-656 4-conductor carrier terminal block
Part #:281-656
SKU #: 2246193
$295.50/50EA
Key Features
Part #:281-656
SKU #: 2246193
Brand: Wago
Amperage Rating: 10, 10 A
Dimensions: 0.236 in W x 3.38 in D
Type: Horizontal
Voltage Rating: 400, 400 VAC
Actuation type: Operating tool
$295.50/50EA
- 6 kV rated impulse voltage
- Overvoltage category III/pollution 3 deg legend ratings
- Front-entry wire type
- 4 total number of connection points
- 2 total number of potentials, 1 number of level
- CAGE CLAMP connection technology
- Copper connectable conductor materials
- 12 to 28 AWG solid/stranded conductor
- 0.206 MJ fire load
- Operating tool actuation type
- 1.142 in height from upper-edge of DIN-35 rail
Specifications
Brand: Wago
Amperage Rating: 10, 10 A
Dimensions: 0.236 in W x 3.38 in D
Type: Horizontal
Voltage Rating: 400, 400 VAC
Actuation type: Operating tool
Color: Gray
Connection technology: CAGE CLAMP®
Country of origin: CN
Depth: 86 mm / 3.386 inch
Insulation material: Polyamide (PA66)
Material: Polyamide 6.6
Mounting type: Carrier Rail 35 x 15, DIN-35 rail
Rated current: 0.416666666666667
Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
Total number of connection points: 4
Weight: 12.806 g
Width: 6 mm / 0.236 inch
Wiring type: Front-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121410
UPC: 04050821214915
Item Features
Item FeaturesIEC/EN 60947-7-3|RoHS Compliant
