WAGO 281-659 Disconnect terminal block
Part Number # 281-659
SKU # 2319735
$366.93 / 50Each
Typical price:$397.50 / Each
Wago 281-659 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 281-659 |
| SKU #: | 2319735 |
| Amperage Rating: | 10 A |

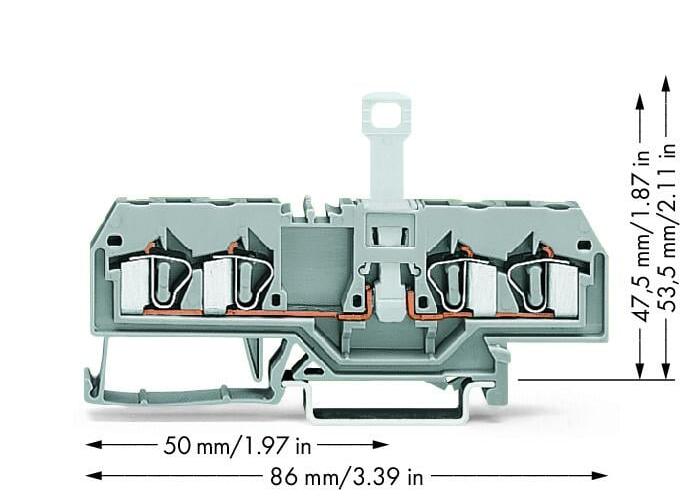

| Dimensions: | 3.386 in H x 0.236 in W x 2.106 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 86 mm / 3.386 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 0.416666666666667 |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 13.345 g |
| Width: | 6 mm / 0.236 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918837781 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$366.93 / 50Each
Typical price:$397.50 / Each
Quantity:
- WAGO, 281-659, Disconnect Terminal Block, Operating Tool, 400 V, 10 A, 2 Pole, 28 to 12 AWG Wire, 0.35 to 0.39 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, -35 to 85 deg C, Polyamide, Gray, 3.386 in H x 0.236 in W x 2.106 in D Dimensions
281-659 Item Features
- Solid conductor 28 to 12 AWG, Fine-stranded conductor 28 to 12 AWG
281-659 Standards
RoHS CompliantSKU #2319735Part Number #281-659UNSPSC39121410UPC04044918837781
