Part Number # 281-673/281-410
SKU # 2198817
Image provided may only be a representation of
final product and may include optional equipment
281-673/281-410

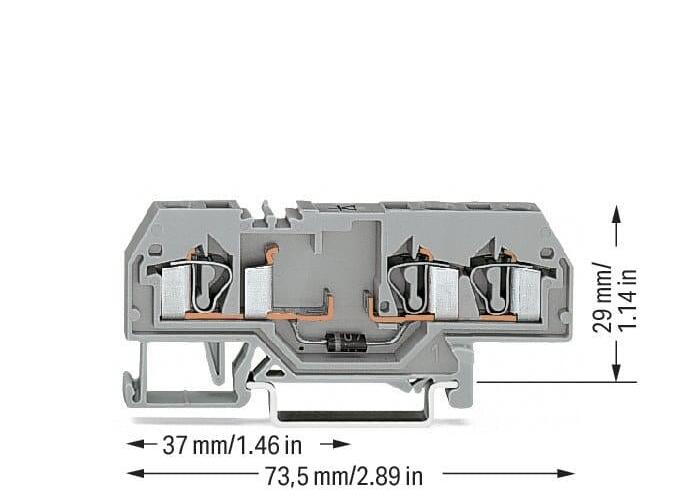

WAGO 281-673/281-410 Component terminal block
Part Number # 281-673/281-410
SKU # 2198817
$612.50 / 50Each
Typical price:$663.50 / Each
Wago 281-673/281-410 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 281-673/281-410 |
| SKU #: | 2198817 |
| Amperage Rating: | 0.5 A |
| Dimensions: | 2.894 in H x 0.236 in W x 1.142 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 73.5 mm / 2.894 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 0.5 A |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 3 |
| Weight: | 11.378 g |
| Width: | 6 mm / 0.236 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821275589 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$612.50 / 50Each
Typical price:$663.50 / Each
Quantity:
WAGO 281-673/281-410 Component terminal block
Brand: Wago
Part Number: 281-673/281-410
Additional Description: WAGO-281-673/281-410 COMPONENT TERMINAL BLOCK; 3-CONDUCTOR; WITH DIODE 1N4007; ANODE, LEFT SIDE; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 4 MM ; CAGE CLAMP ; 4,00 MM ; GRAY 51243847
Catalog Description: Component terminal block; 3-conductor; with diode 1N4007; anode, left side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®; 4,00 mm²; gray
281-673/281-410 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2198817Part Number #281-673/281-410UNSPSC39121410UPC04050821275589
