Part Number # 281-683
SKU # 2158947
281-683

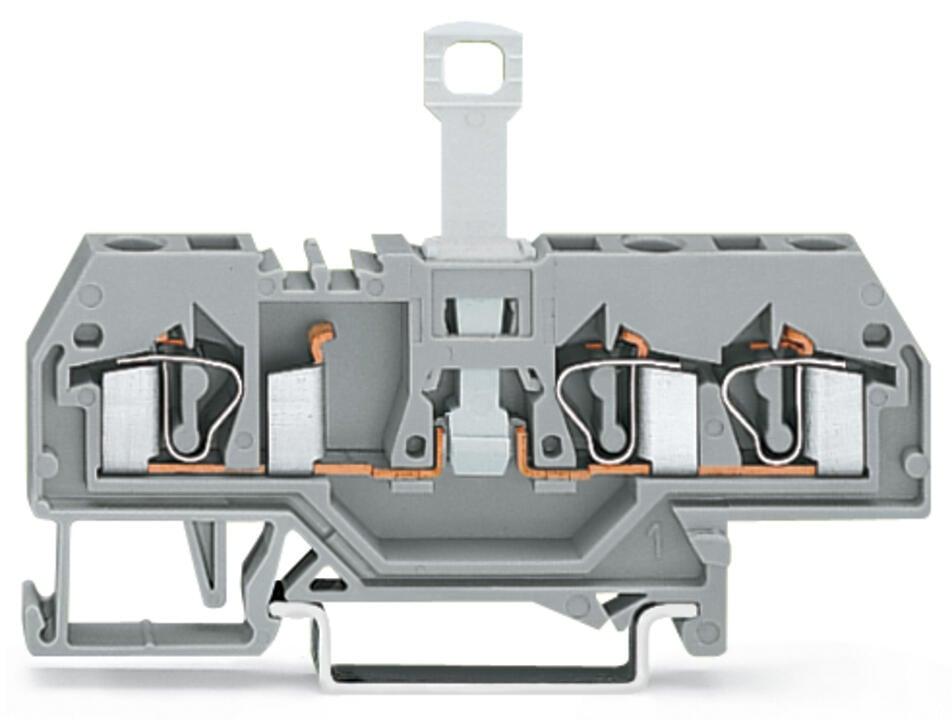

WAGO 281-683 Disconnect terminal block
Part Number # 281-683
SKU # 2158947
$295.00 / 50Each
Typical price:$319.50 / Each
Wago 281-683 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 281-683 |
| SKU #: | 2158947 |
| Amperage Rating: | 10 A |
| Dimensions: | 2.894 in H x 0.236 in W x 2.106 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 73.5 mm / 2.894 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 0.416666666666667 |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 3 |
| Weight: | 11.515 g |
| Width: | 6 mm / 0.236 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918632027 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$295.00 / 50Each
Typical price:$319.50 / Each
Quantity:
WAGO 281-683 Disconnect terminal block
Brand: Wago
Part Number: 281-683
Additional Description: WAGO-281-683 3-CONDUCTOR DISCONNECT TERMINAL BLOCK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 4 MM; CAGE CLAMP; 4,00 MM; GRAY 51139129 BLOCK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 4 MM ; CAGE CLAMP ; 4,00 MM ; GRAY FRONT 51139129
Catalog Description: 3-conductor disconnect terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®; 4,00 mm²; gray
281-683 Item Features
- Solid conductor 28 to 12 AWG, Fine-stranded conductor 28 to 12 AWG
281-683 Standards
RoHS CompliantSKU #2158947Part Number #281-683UNSPSC39121410UPC04044918632027
Image provided may only be a representation of final product and may include optional equipment
