Part Number # 281-687
SKU # 2118018
Image Disclaimers Message
Brand: Wago
281-687

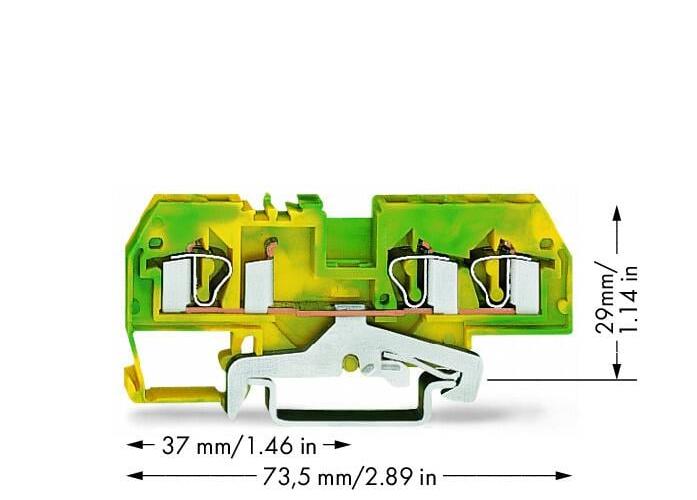

WAGO 281-687 3-conductor ground terminal block
Part Number # 281-687
SKU # 2118018
$463.00 / 50Each
Typical price:$501.50 / Each
Wago 281-687 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 281-687 |
| SKU #: | 2118018 |
| Dimensions: | 2.894 in H x 0.236 in W x 1.142 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 73.5 mm / 2.894 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 3 |
| Weight: | 15.217 g |
| Width: | 6 mm / 0.236 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454100193 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$463.00 / 50Each
Typical price:$501.50 / Each
Quantity:
WAGO 281-687 3-conductor ground terminal block
Brand: Wago
Part Number: 281-687
Additional Description: WAGO-281-687 3-CONDUCTOR GROUND TERMINAL BLOCK; 4 MM; CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP; 4,00 MM; GREEN-YELLOW 51162267 4 MM ; CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP ; 4,00 MM ; GREEN-YELLOW GRND 51162267
Catalog Description: 3-conductor ground terminal block; 4 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 4,00 mm²; green-yellow
281-687 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2118018Part Number #281-687UNSPSC39121410UPC04045454100193
