Part Number # 281-907/999-950
SKU # 2225976
Image Disclaimers Message
281-907/999-950

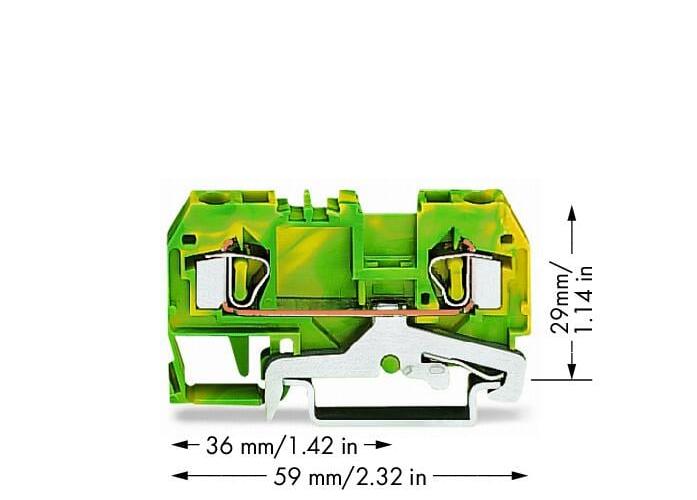

WAGO 281-907/999-950 2-conductor ground terminal block
Part Number # 281-907/999-950
SKU # 2225976
Wago 281-907/999-950 Key Features
Brand: | Wago |
---|---|
Part Number # : | 281-907/999-950 |
SKU #: | 2225976 |
Dimensions: | 2.323 in H x 0.236 in W x 1.142 in D |
Number of Poles: | 1 |
Temperature Rating (Degrees F): | -35 to 85 deg C |
Type: | Operating Tool |
Wire Size: | 28 to 12 AWG |
Actuation type: | Operating tool |
Color: | Green-yellow, Green/Yellow |
Connection technology: | CAGE CLAMP® |
Connection type: | Clamp |
Country of origin: | DE |
Depth: | 59 mm / 2.323 inch |
Insulation material: | Polyamide (PA66) |
Material: | Polyamide |
Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
Total number of connection points: | 2 |
Weight: | 12.644 g |
Width: | 6 mm / 0.236 inch |
Wiring type: | Front-entry wiring |
Manufacturer Name: | WAGO Corporation |
UNSPSC: | 39121410 |
UPC: | 04044918513579 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 281-907/999-950 2-conductor ground terminal block
Brand: Wago
Part Number: 281-907/999-950
Additional Description: WAGO-281-907/999-950 2-CONDUCTOR GROUND TERMINAL BLOCK; 4 MM; SUITABLE FOR EX E II APPLICATIONS; CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP; 4,00 MM; GREEN-YELLOW 51131787 4 MM ; SUITABLE FOR EX E II DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP ; 4,00 MM ; GREEN-YELLOW GRND 51131787
Catalog Description: 2-conductor ground terminal block; 4 mm²; suitable for Ex e II applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 4,00 mm²; green-yellow
281-907/999-950 Application
Suitable for Ex e II applications281-907/999-950 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2225976Part Number #281-907/999-950UNSPSC39121410UPC04044918513579
