Part Number # 281-912
SKU # 2357635
Image provided may only be a representation of
final product and may include optional equipment
281-912

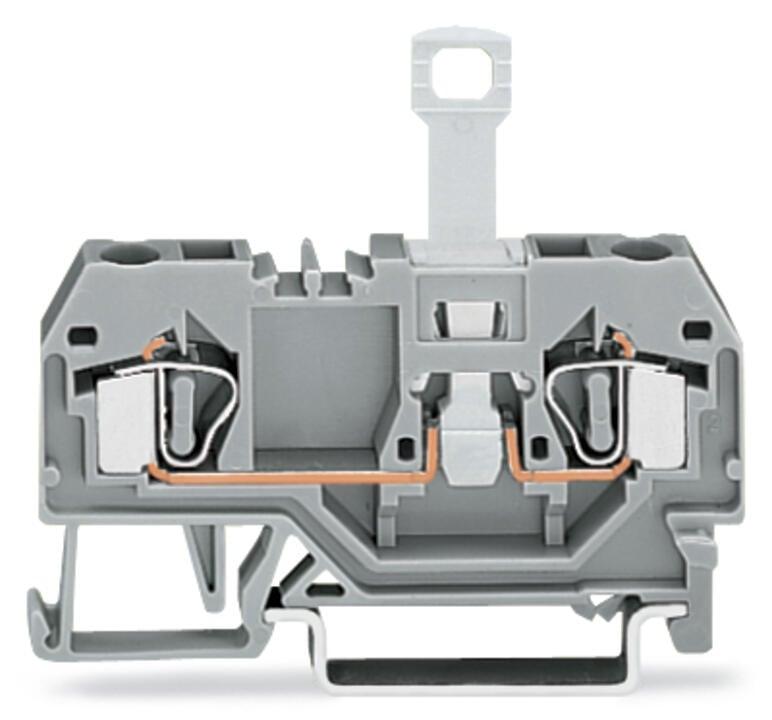

WAGO 281-912 Disconnect terminal block
Part Number # 281-912
SKU # 2357635
$5.03 / Each
Typical price:$5.45 / Each
Wago 281-912 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 281-912 |
| SKU #: | 2357635 |
| Amperage Rating: | 10 A |
| Dimensions: | 2.323 in H x 0.236 in W x 2.106 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 59 mm / 2.323 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 0.416666666666667 |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 8.473 g |
| Width: | 6 mm / 0.236 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918631778 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.03 / Each
Typical price:$5.45 / Each
Quantity:
WAGO 281-912 Disconnect terminal block
Brand: Wago
Part Number: 281-912
Additional Description: WAGO-281-912 2-CONDUCTOR DISCONNECT TERMINAL BLOCK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 4 MM ; CAGE CLAMP ; 4,00 MM ; GRAY 51139104
Catalog Description: 2-conductor disconnect terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®; 4,00 mm²; gray
281-912 Item Features
- Solid conductor 28 to 12 AWG, Fine-stranded conductor 28 to 12 AWG
281-912 Standards
RoHS CompliantSKU #2357635Part Number #281-912UNSPSC39121410UPC04044918631778
