Brand: Wago
282-104

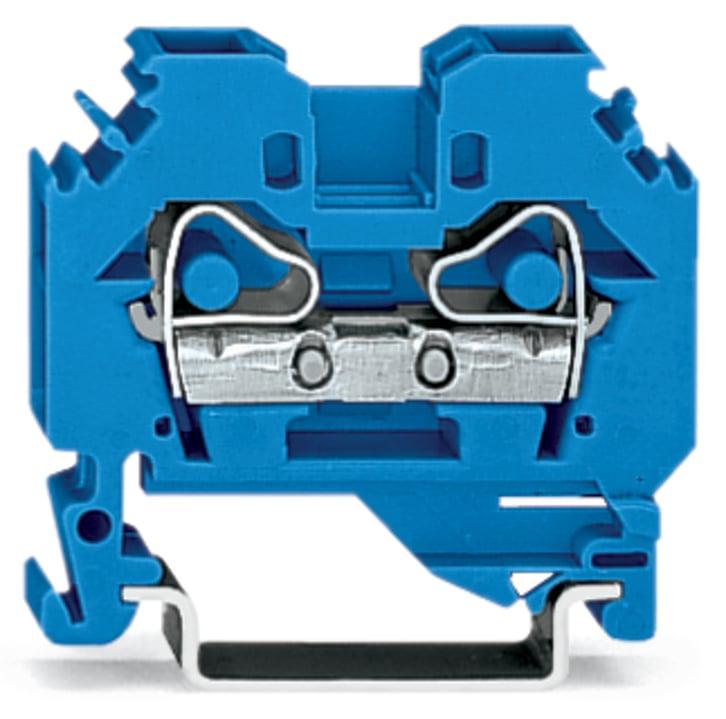

WAGO 282-104 2-conductor through terminal block
Part Number # 282-104
SKU # 935577
$174.50 / 50Each
Typical price:$189.00 / Each
Wago 282-104 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 282-104 |
| SKU #: | 935577 |
| Amperage Rating: | 41 A |
| Dimensions: | 1.831 in H x 0.315 in W x 1.457 in D |
| Series: | 282 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Terminal Type: | Through |
| Type: | 2 Conductor |
| Wire Size: | 24 to 10 AWG |
| Actuation type: | Operating tool |
| Color: | Blue |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Cage Clamp |
| Country of origin: | DE |
| Depth: | 46.5 mm / 1.831 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 |
| Mounting type: | DIN Rail, DIN-35 rail |
| Rated current: | 41 A |
| Solid conductor: | 0.2 … 6 mm² / 24 … 10 AWG |
| Total number of connection points: | 2 |
| Weight: | 11.482 g |
| Width: | 8 mm / 0.315 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918511117 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$174.50 / 50Each
Typical price:$189.00 / Each
Quantity:
- WAGO, 282-104, Terminal Block, 2 Conductor, Series: 282, 800 V, 41 A, 24 to 10 AWG Wire, 0.47 to 0.51 in Wire Strip Length, Through Terminal, DIN Rail Mounting, Cage Clamp Connection, -60 to 105 deg C, Polyamide 6.6, Blue, 1.831 in H x 0.315 in W x 1.457 in D Dimensions
282-104 Application
Suitable for Ex i applications282-104 Standards
RoHS CompliantSKU #935577Part Number #282-104UNSPSC39121410UPC04044918511117
