282-124

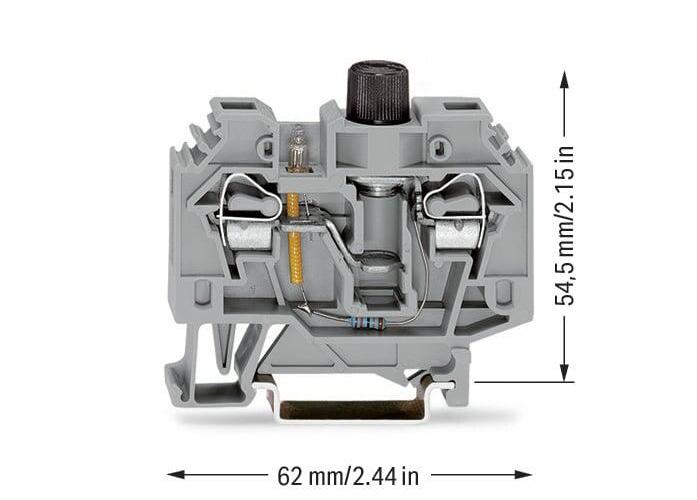

WAGO 282-124 2-conductor fuse terminal block
Part Number # 282-124
SKU # 2308647
$1147.20 / 40Each
Typical price:$1242.80 / Each
Wago 282-124 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 282-124 |
| SKU #: | 2308647 |
| Dimensions: | 2.441 in H x 0.512 in W x 2.146 in D |
| Number of Poles: | 2 |
| Type: | Operating Tool |
| Wire Size: | 24 to 10 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 62 mm / 2.441 inch |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 0.416666666666667 |
| Solid conductor: | 0.2 … 6 mm² / 24 … 10 AWG |
| Total number of connection points: | 2 |
| Weight: | 26.331 g |
| Width: | 13 mm / 0.512 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821110309 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1147.20 / 40Each
Typical price:$1242.80 / Each
Quantity:
WAGO 282-124 2-conductor fuse terminal block
Brand: Wago
Part Number: 282-124
Additional Description: WAGO-282-124 2-CONDUCTOR FUSE TERMINAL BLOCK; FOR 5 X 20 MM MINIATURE METRIC FUSE; WITH BLOWN FUSE INDICATION BY NEON LAMP; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 6 MM ; CAGE CLAMP ; 6,00 MM ; GRAY 51230918
Catalog Description: 2-conductor fuse terminal block; for 5 x 20 mm miniature metric fuse; with blown fuse indication by neon lamp; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; CAGE CLAMP®; 6,00 mm²; gray
282-124 Standards
RoHS CompliantSKU #2308647Part Number #282-124UNSPSC39121410UPC04050821110309
