Brand: Wago
282-140

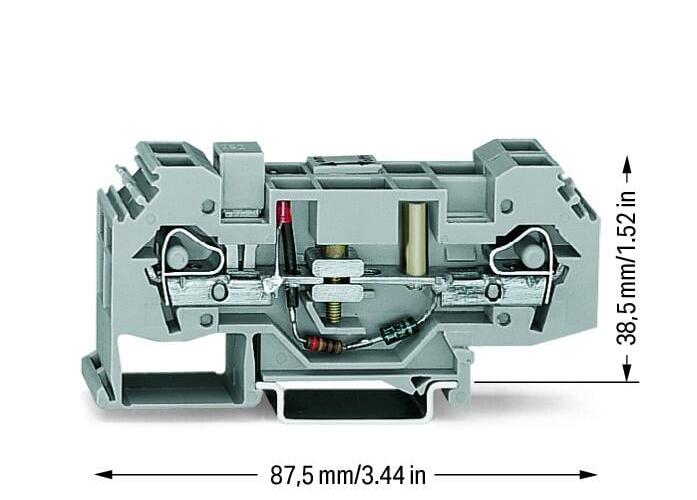

WAGO 282-140 Ground conductor disconnect terminal block
Part Number # 282-140
SKU # 2199549
$94.80 / Each
Typical price:$102.70 / Each
Wago 282-140 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 282-140 |
| SKU #: | 2199549 |
| Dimensions: | 3.445 in H x 0.63 in W x 1.516 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 24 to 10 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 87.5 mm / 3.445 inch |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Solid conductor: | 0.2 … 6 mm² / 24 … 10 AWG |
| Total number of connection points: | 4 |
| Weight: | 45.379 g |
| Width: | 16 mm / 0.63 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454448516 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$94.80 / Each
Typical price:$102.70 / Each
Quantity:
- WAGO, 282-140, Disconnect Terminal Block, Operating Tool, 2 Pole, 24 to 10 AWG Wire, 0.47 to 0.51 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, -35 to 85 deg C, Polyamide, Gray, 3.445 in H x 0.63 in W x 1.516 in D Dimensions
282-140 Item Features
- Solid conductor 24 to 10 AWG, Fine-stranded conductor 24 to 10 AWG
282-140 Standards
RoHS CompliantSKU #2199549Part Number #282-140UNSPSC39121410UPC04045454448516
