Part Number # 282-607
SKU # 305557
Image Disclaimers Message
Brand: Wago
282-607

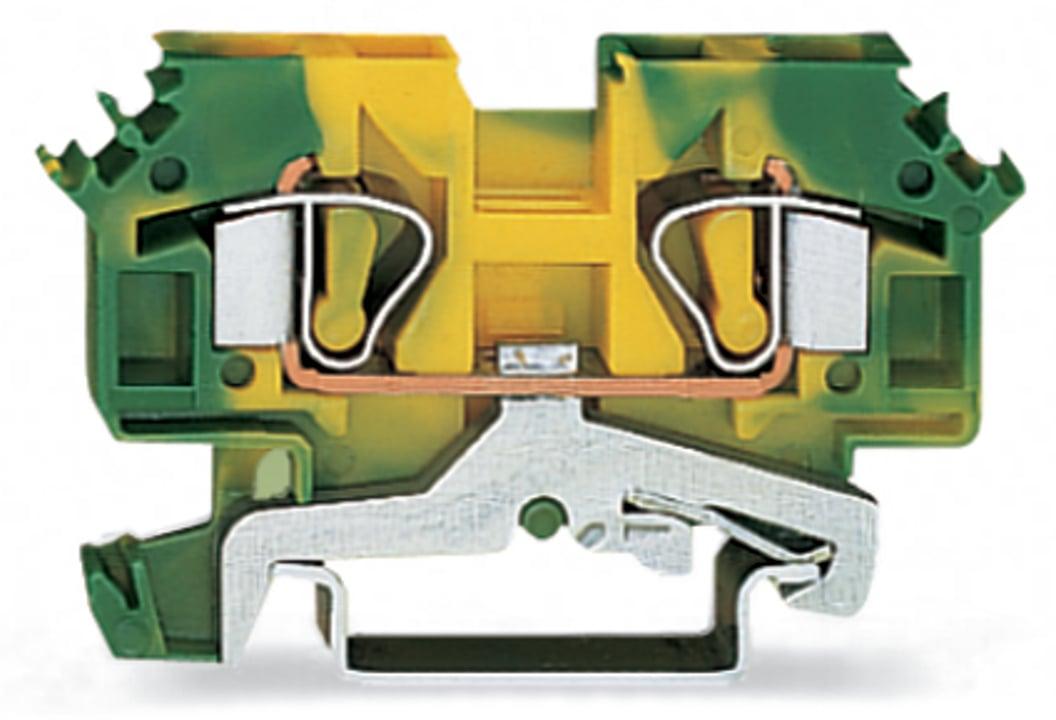

WAGO 282-607 2-conductor ground terminal block
Part Number # 282-607
SKU # 305557
$497.50 / 50Each
Typical price:$539.00 / Each
Wago 282-607 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 282-607 |
| SKU #: | 305557 |
| Dimensions: | 2.44 in H x 0.31 in W x 1.24 in D |
| Number of Poles: | 2 |
| Series: | 282 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Terminal Type: | Cage Clamp |
| Type: | 2-Conductor |
| Wire Size: | 24 to 10 AWG |
| Actuation type: | Operating tool |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Cage Clamp |
| Country of origin: | DE |
| Depth: | 62 mm / 2.441 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide (PA66) |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Solid conductor: | 0.2 … 6 mm² / 24 … 10 AWG |
| Total number of connection points: | 2 |
| Weight: | 19.094 g |
| Width: | 8 mm / 0.315 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454100209 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$497.50 / 50Each
Typical price:$539.00 / Each
Quantity:
- WAGO, 282-607, Terminal Block, 2-Conductor, Series: 282, 2 Pole, 24 to 10 AWG Wire, 0.47 to 0.51 in Wire Strip Length, Cage Clamp Terminal, DIN Rail Mounting, -35 to 85 deg C, Polyamide (PA66), Green/Yellow, 2.44 in H x 0.31 in W x 1.24 in D Dimensions
282-607 Item Features
- 2 Clamping Points
- 1 Potentials
- Front-entry wiring
282-607 Standards
RoHS CompliantSKU #305557Part Number #282-607UNSPSC39121410UPC04045454100209
