282-696

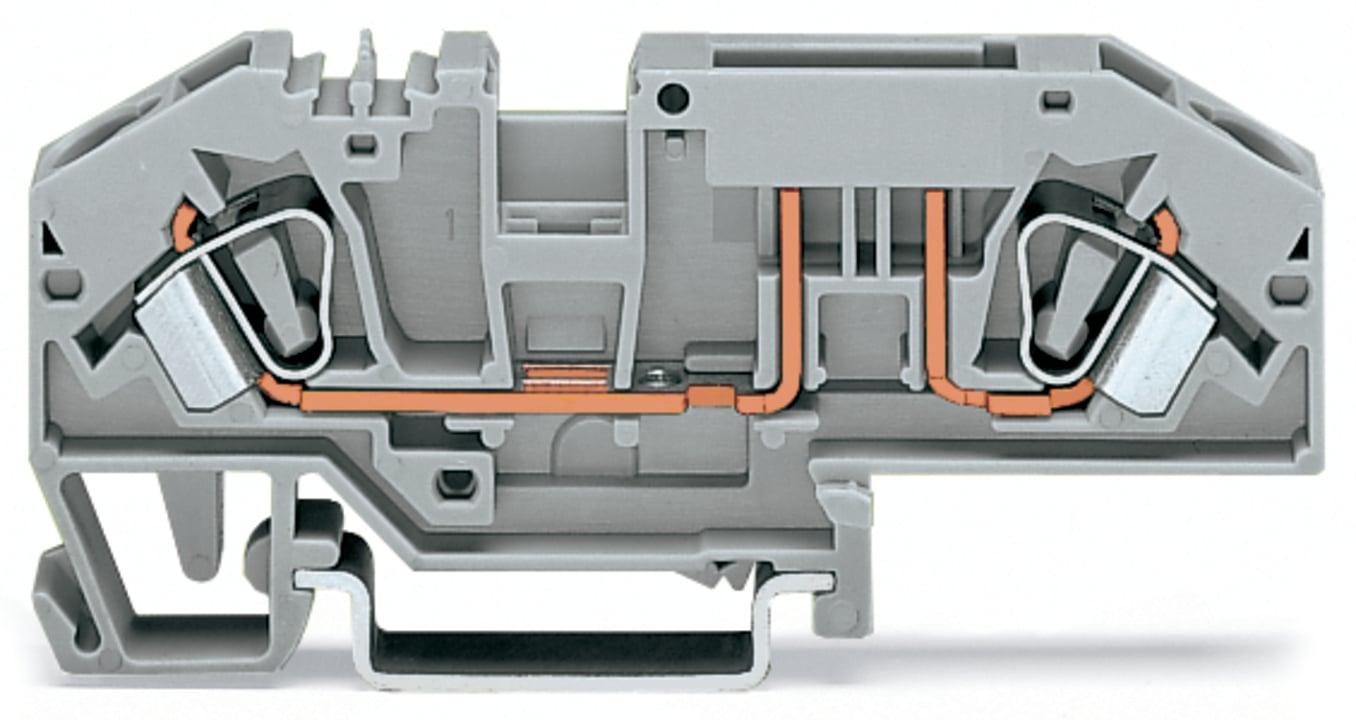

WAGO 282-696 2-conductor fuse terminal block
Part Number # 282-696
SKU # 300313
Wago 282-696 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 282-696 |
| SKU #: | 300313 |
| Amperage Rating: | 25 to 30, 25 to 30 A |
| Dimensions: | 1.319 in H x 0.315 in W x 3.346 in D |
| Series: | 282 |
| Terminal Type: | Disconnect |
| Wire Size: | 24 to 10, 24 to 10 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Cage Clamp |
| Country of origin: | CN |
| Depth: | 85 mm / 3.346 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 Insulation |
| Mounting type: | DIN Rail, DIN-35 rail |
| Rated current: | 25 A |
| Solid conductor: | 0.2 … 6 mm² / 24 … 10 AWG |
| Total number of connection points: | 2 |
| Weight: | 17.285 g |
| Width: | 8 mm / 0.315 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821234517 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 282-696 2-conductor fuse terminal block
Brand: Wago
Part Number: 282-696
WAGO Fuse Terminal Block, Series: 282, 400 VAC, 25 to 30 A, 24 to 10 AWG Wire, 0.47 to 0.51 in Wire Strip Length, Disconnect Terminal, DIN Rail Mount, Cage Clamp, Polyamide 6.6 Insulation, Gray, 1.319 in H x 0.315 in W x 3.346 in D
Additional Description: WAGO-282-696 2-CONDUCTOR FUSE TERMINAL BLOCK; FOR AUTOMOTIVE BLADE-STYLE FUSES; WITH TEST OPTION; WITHOUT BLOWN FUSE INDICATION; 6 MM ; CAGE CLAMP ; 6,00 MM ; GRAY BLOCK 51240578
Catalog Description: 2-conductor fuse terminal block; for automotive blade-style fuses; with test option; without blown fuse indication; 6 mm²; CAGE CLAMP®; 6,00 mm²; gray
282-696 Application
For Mini-Automotive Blade-Style Fuses282-696 Item Features
- 2 terminals
- 2 potentials, front-entry wiring, 6kV impulse voltage, 3 deg pollution
- Angled design, center marking
- CAGE CLAMP connection technology, operating tool actuation
- Copper conductor
- Electrical ratings are given by the fuse
- With test option and without blown fuse indication
- 400 V rated voltage, 24 V CSA, 600 V UL, 25 - 30 A rated current, 30 A UL/CSA
282-696 Standards
154112-1505033 CSA Certified|RoHS Compliant|UL E45172 ListedSKU #300313Part Number #282-696UNSPSC39121410UPC04050821234517
